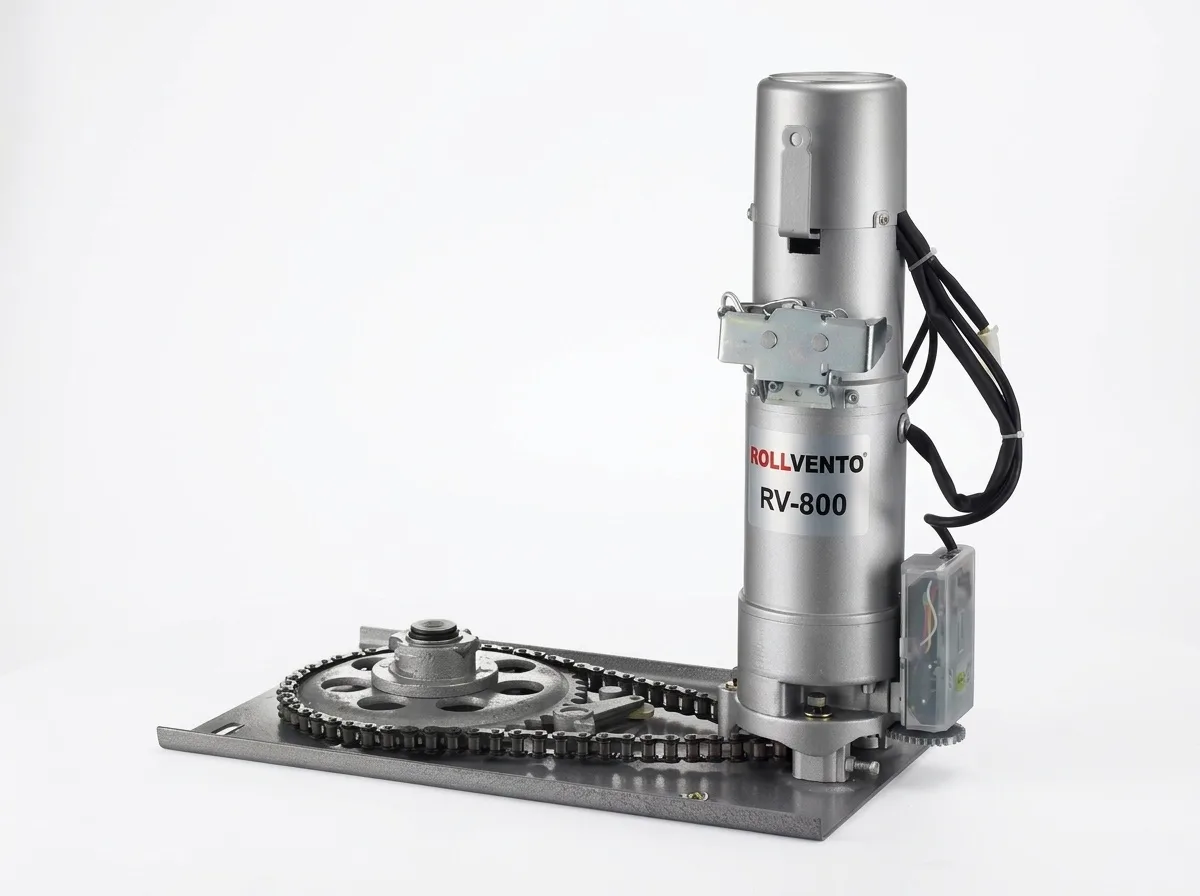

RV-800 Single Phase Rolling Shutter Motor

Name: RV-800 Single Phase Rolling Shutter Motor
Brand: Rollvento
SKU: RV-800

What the RV-800 delivers

The Rollvento RV-800 is a robust single-phase heavy commercial rolling shutter drive designed for wide spans, industrial workshops, and loading bays up to 800 kg. Powered by a 370W 220V motor delivering 400 N·m torque with emergency manual hoist, anti-drop brake, and high lifting elevation.

Emergency hand chain mechanism for smooth manual operation
Complete installation hardware and control set included

Technical information

Values as published in Rollvento product data, grouped for quick reference. Open a section to view details; confirm site-specific parameters with engineering before ordering.

Get a Quote

5 sections · 27 items

Lifting Capacity: 800 kg
Torque: 400 N·m
Speed: 8–10 RPM
Max. Lifting Height: 7.0 m
Duty Cycle: S2 – 10 min

Power: 370 W
Voltage: 220 V
Phase: Single Phase
Frequency: 50 Hz
Rated Current: 3.8 A
Insulation Class: Class B

Industrial factories & manufacturing workshops
Heavy commercial shopping mall entries
High-bay warehouse partitions
Distribution loading bays & freight areas

Mounting Brackets & Bearing Plate
2x Wireless Remote Controls
Receiver / Control Board
3-Button Wall Push Button Switch
External Lock Box with Keys
Manual Chain (Emergency Hand Operation)
Installation Hardware & Running Capacitor

The motor mounts on the shutter bracket plate on either side of the roller; left- or right-hand mounting is set at installation.
The drive sprocket connects to the shaft sprocket with a roller chain; alignment must be checked so the chain runs straight under load.
Upper and lower travel limits are set on the limit-switch dials after the curtain has been fitted to the roller.
The manual chain must hang clear of the curtain and be reachable from floor level with the power isolated.
A dedicated supply with an isolator and correctly rated MCB is required; three-phase units need phase-sequence verification before first run.

FAQ

RV-800: frequently asked questions

What is the lifting capacity of the RV-800?

The RV-800 is rated for 800 kg.

What is the output torque of the RV-800?

The RV-800 delivers 400 N·m output torque.

What power supply does the RV-800 need?

The RV-800 runs on 220 V (Single Phase).

What is included with the RV-800?

Standard supply includes: Mounting Brackets & Bearing Plate, 2x Wireless Remote Controls, Receiver / Control Board, 3-Button Wall Push Button Switch, External Lock Box with Keys, Manual Chain (Emergency Hand Operation), Installation Hardware & Running Capacitor.

Where is the RV-800 used?

Typical applications: Industrial factories & manufacturing workshops, Heavy commercial shopping mall entries, High-bay warehouse partitions, Distribution loading bays & freight areas.

What is a rolling shutter motor?

A rolling shutter motor is a side-mounted electromechanical drive that turns the shutter shaft through a gearbox and chain to raise and lower the curtain. It replaces manual pull-chains or spring balancing and is rated by curtain weight (kg), output torque (N·m) and supply phase.

How do I know which capacity I need?

Weigh or calculate the curtain weight (slat weight per square metre × curtain area, plus the bottom rail). Choose the next capacity above that figure with at least a 15–20% margin. Rollvento single-phase models cover 400–1000 kg and three-phase models cover 1500–2000 kg.
