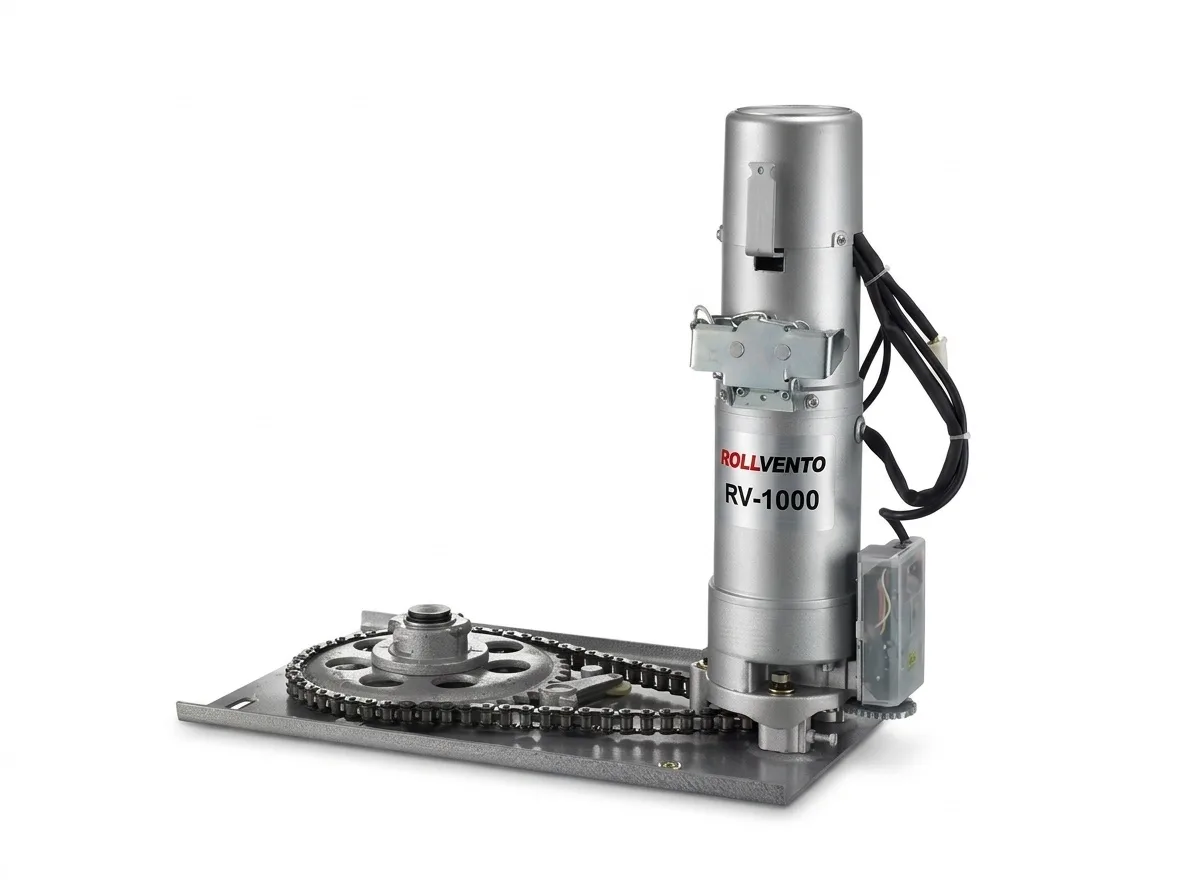

RV-1000 Single Phase Rolling Shutter Motor

Name: RV-1000 Single Phase Rolling Shutter Motor
Brand: Rollvento
SKU: RV-1000

What the RV-1000 delivers

The Rollvento RV-1000 is our maximum-capacity single-phase rolling shutter drive engineered to lift high-span industrial shutters up to 1000 kg (1 Ton). Powered by a 550W 220V motor producing 500 N·m torque with smooth 8–10 RPM speed, manual chain hoist, and complete standard kit.

Emergency hand chain manual override assembly
Complete standard kit with mounting bracket, wireless remotes, lock box, and push button station

Technical information

Values as published in Rollvento product data, grouped for quick reference. Open a section to view details; confirm site-specific parameters with engineering before ordering.

Get a Quote

5 sections · 28 items

Lifting Capacity: 1000 kg
Torque: 500 N·m
Speed: 8–10 RPM
Max. Lifting Height: 7.5 m
Duty Cycle: S2 – 10 min

Power: 550 W
Voltage: 220 V
Phase: Single Phase
Frequency: 50 Hz
Rated Current: 4.8 A
Insulation Class: Class B

1 Ton industrial factory shutters
High-span warehouse openings
Heavy insulated acoustic & security doors
Freight terminals & logistics hubs
Large commercial complex entrances

Mounting Brackets & Bearing Plate
2x Wireless Remote Controls
Receiver / Control Board
3-Button Wall Push Button Switch
External Lock Box with Keys
Manual Chain (Emergency Hand Operation)
Installation Hardware & Running Capacitor

The motor mounts on the shutter bracket plate on either side of the roller; left- or right-hand mounting is set at installation.
The drive sprocket connects to the shaft sprocket with a roller chain; alignment must be checked so the chain runs straight under load.
Upper and lower travel limits are set on the limit-switch dials after the curtain has been fitted to the roller.
The manual chain must hang clear of the curtain and be reachable from floor level with the power isolated.
A dedicated supply with an isolator and correctly rated MCB is required; three-phase units need phase-sequence verification before first run.

FAQ

RV-1000: frequently asked questions

What is the lifting capacity of the RV-1000?

The RV-1000 is rated for 1000 kg.

What is the output torque of the RV-1000?

The RV-1000 delivers 500 N·m output torque.

What power supply does the RV-1000 need?

The RV-1000 runs on 220 V (Single Phase).

What is included with the RV-1000?

Standard supply includes: Mounting Brackets & Bearing Plate, 2x Wireless Remote Controls, Receiver / Control Board, 3-Button Wall Push Button Switch, External Lock Box with Keys, Manual Chain (Emergency Hand Operation), Installation Hardware & Running Capacitor.

Where is the RV-1000 used?

Typical applications: 1 Ton industrial factory shutters, High-span warehouse openings, Heavy insulated acoustic & security doors, Freight terminals & logistics hubs, Large commercial complex entrances.

What is a rolling shutter motor?

A rolling shutter motor is a side-mounted electromechanical drive that turns the shutter shaft through a gearbox and chain to raise and lower the curtain. It replaces manual pull-chains or spring balancing and is rated by curtain weight (kg), output torque (N·m) and supply phase.

How do I know which capacity I need?

Weigh or calculate the curtain weight (slat weight per square metre × curtain area, plus the bottom rail). Choose the next capacity above that figure with at least a 15–20% margin. Rollvento single-phase models cover 400–1000 kg and three-phase models cover 1500–2000 kg.
