RL-CUSTOM Rollvento Custom Rolling Shutter Drive System

Name: RL-CUSTOM Rollvento Custom Rolling Shutter Drive System
Brand: Rollvento
SKU: RL-CUSTOM

What the RL-CUSTOM delivers

Rollvento provides side-mounted and central rolling shutter motor systems for commercial shopfronts, industrial warehouses, and security shutters. Contact our engineering team for sizing and datasheets.

Engineered on order. This product is configured to site requirements. Share your dimensions and duty cycle and engineering will confirm a specification.

Custom torque ratings from 300 kg to 1500 kg
Emergency hand chain override for power outages
Integrated safety anti-drop brake system
Inquire with Rollvento Engineering for detailed project quotation

Technical information

Values as published in Rollvento product data, grouped for quick reference. Open a section to view details; confirm site-specific parameters with engineering before ordering.

Get a Quote

4 sections · 9 items

Status: Engineered on Order / Technical Verification Available on Inquiry

Capacity Range: 300 kg – 1500 kg

Commercial storefronts
Industrial shutter doors

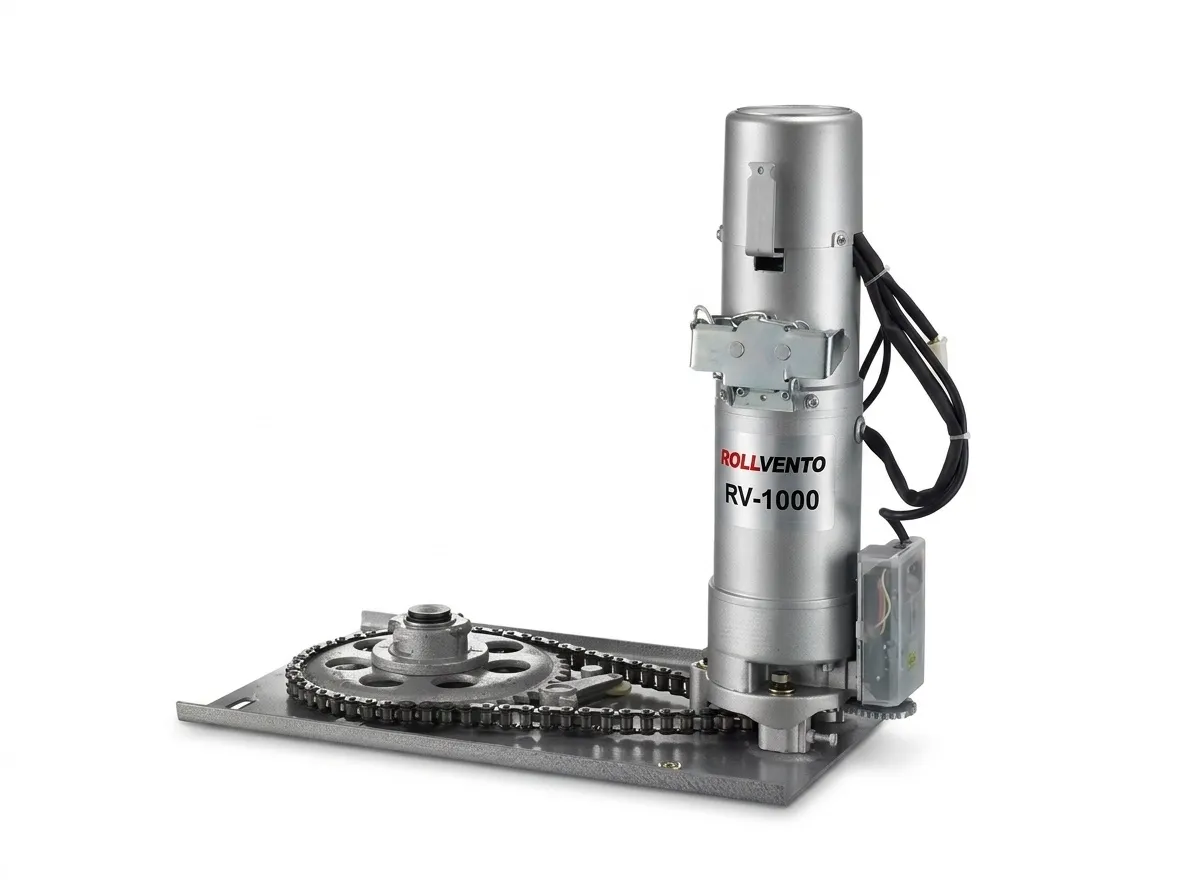

The motor mounts on the shutter bracket plate on either side of the roller; left- or right-hand mounting is set at installation.
The drive sprocket connects to the shaft sprocket with a roller chain; alignment must be checked so the chain runs straight under load.
Upper and lower travel limits are set on the limit-switch dials after the curtain has been fitted to the roller.
The manual chain must hang clear of the curtain and be reachable from floor level with the power isolated.
A dedicated supply with an isolator and correctly rated MCB is required; three-phase units need phase-sequence verification before first run.

FAQ

RL-CUSTOM: frequently asked questions

Where is the RL-CUSTOM used?

Typical applications: Commercial storefronts, Industrial shutter doors.

What is a rolling shutter motor?

A rolling shutter motor is a side-mounted electromechanical drive that turns the shutter shaft through a gearbox and chain to raise and lower the curtain. It replaces manual pull-chains or spring balancing and is rated by curtain weight (kg), output torque (N·m) and supply phase.

How do I know which capacity I need?

Weigh or calculate the curtain weight (slat weight per square metre × curtain area, plus the bottom rail). Choose the next capacity above that figure with at least a 15–20% margin. Rollvento single-phase models cover 400–1000 kg and three-phase models cover 1500–2000 kg.
