Commercial Glass Sliding & Swing Operators

Automatic Door Operators

Header-mounted operators for pedestrian glass sliding and swing doors in retail, hospitality, healthcare and office entrances. These systems are configured to each project’s door size, traffic and safety requirements rather than sold as stock models.

View 5 models Get a Quote

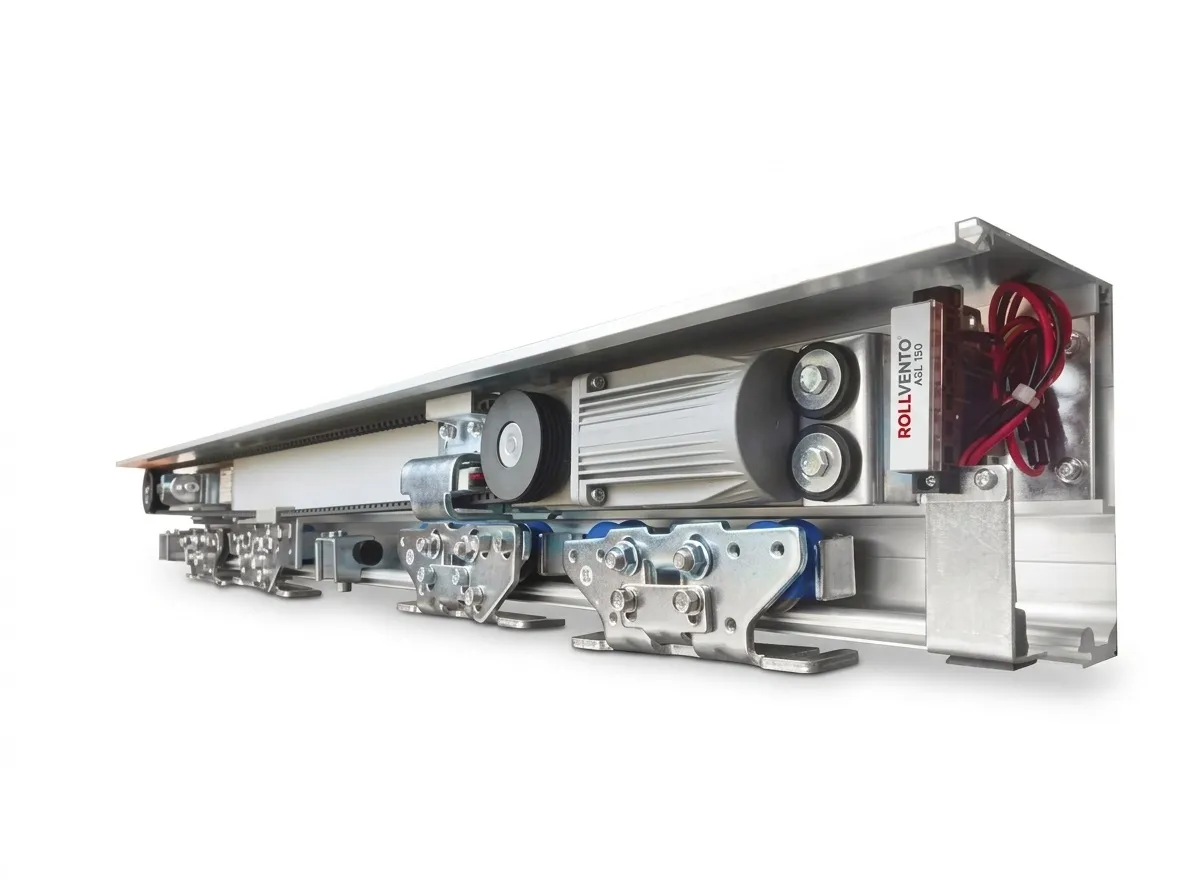

ASL-150 Rollvento ASL-150 Automatic Sliding Door Operator

What is a automatic door operator?

An automatic door operator is a header-mounted drive that opens pedestrian doors on demand from a motion or presence sensor. Sliding operators move one or two glass leaves along a track; swing operators rotate a hinged leaf. They are rated by leaf weight and include safety sensors and battery-backed emergency operation.

All models

Automatic Door Operators — 5 models

Filter by duty class, or open any model for the complete specification table.

AD-CUSTOM

Microprocessor header drive kit for commercial glass sliding and swing doors.

Status: Project Engineered / Inquire for Datasheets

Quote

ASL-150

Brushless DC sliding door operator for a single door to 160 kg, or two leaves at 150 kg each.

Door weight: 1 × 160 kg / 2 × 150 kg
Power consumption: 65 W

Quote

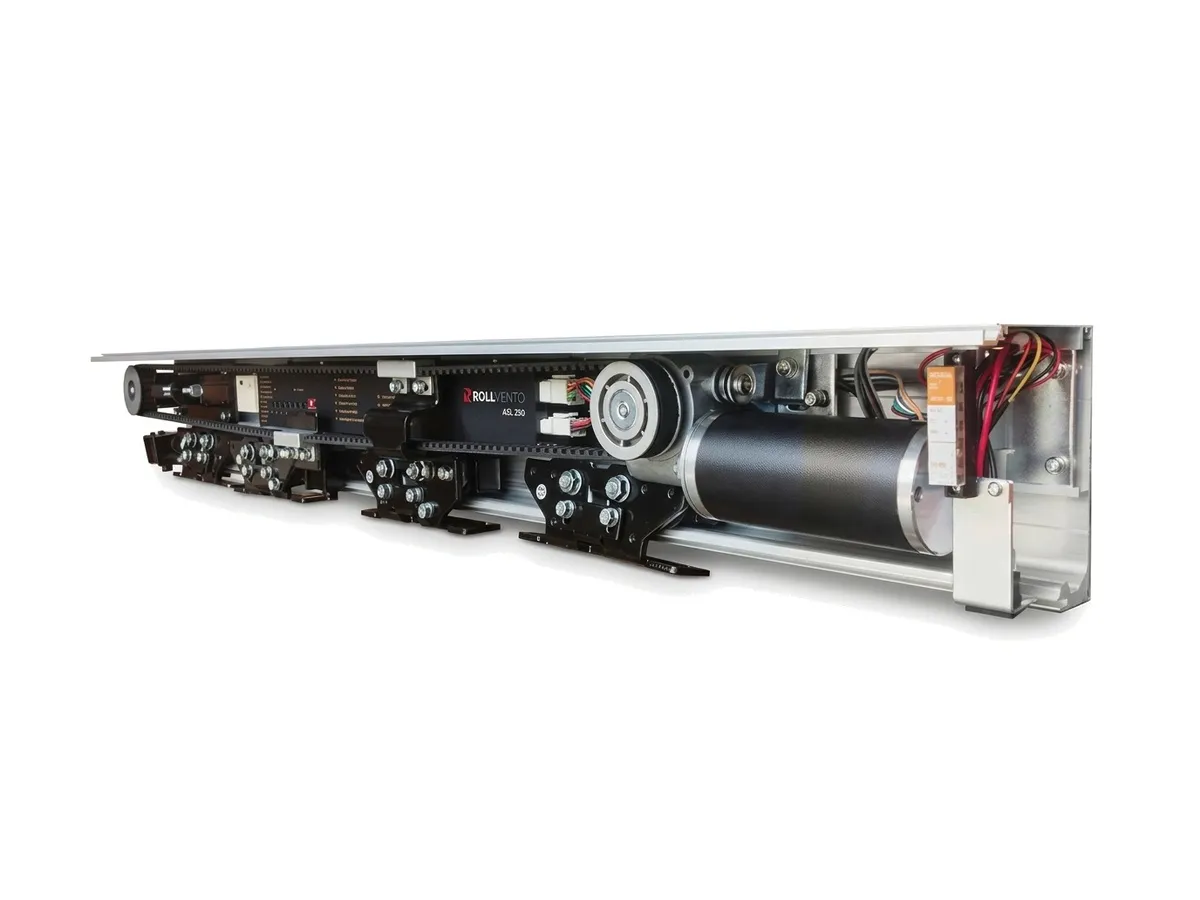

ASL-250

Brushless DC sliding door operator for a single door to 260 kg, or two leaves at 250 kg each.

Door weight: 1 × 260 kg / 2 × 250 kg
Power consumption: 100 W

Quote

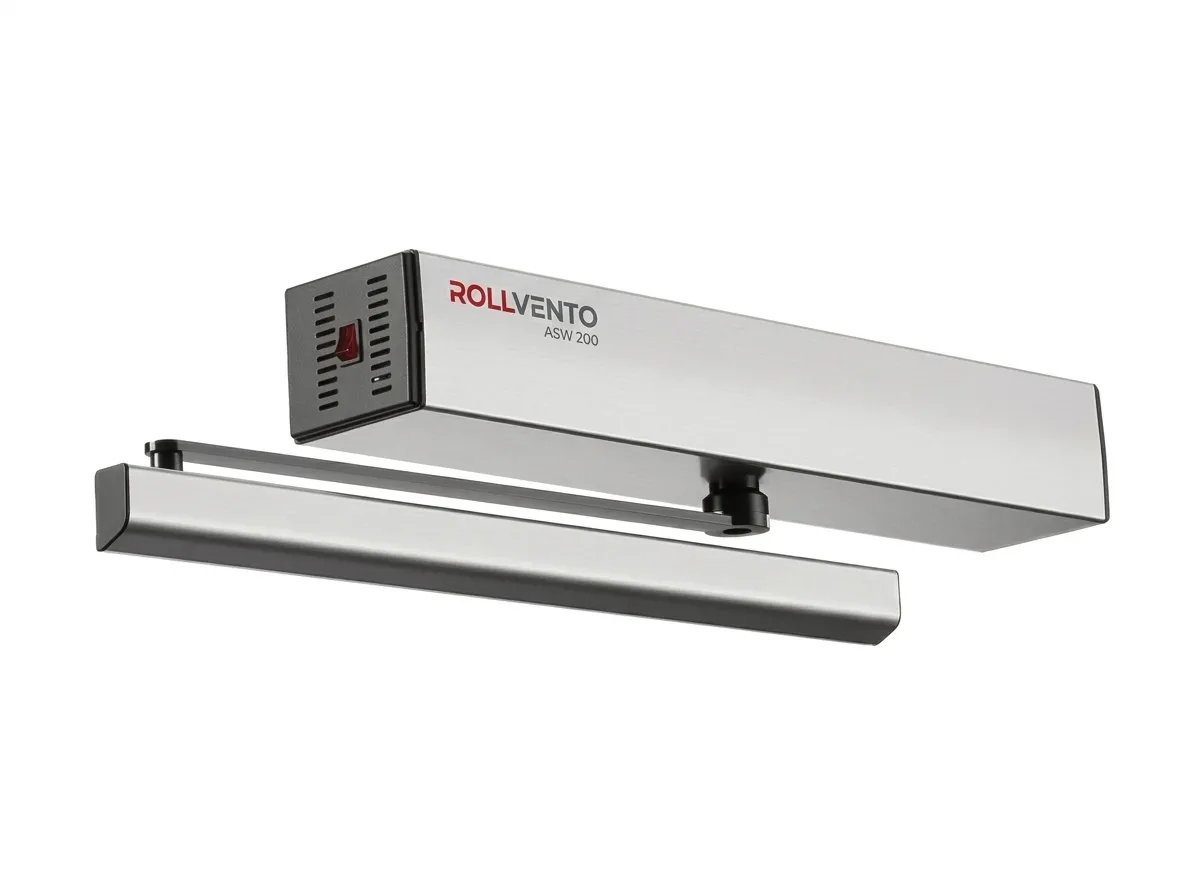

ASW-200

30 W / 60 W
AC 220 V / 110 V

Overhead swing door opener for doors to 200 kg, with a choice of pull arm or push arm.

Max door weight: 100 kg / 200 kg
Motor power: 30 W / 60 W

Quote

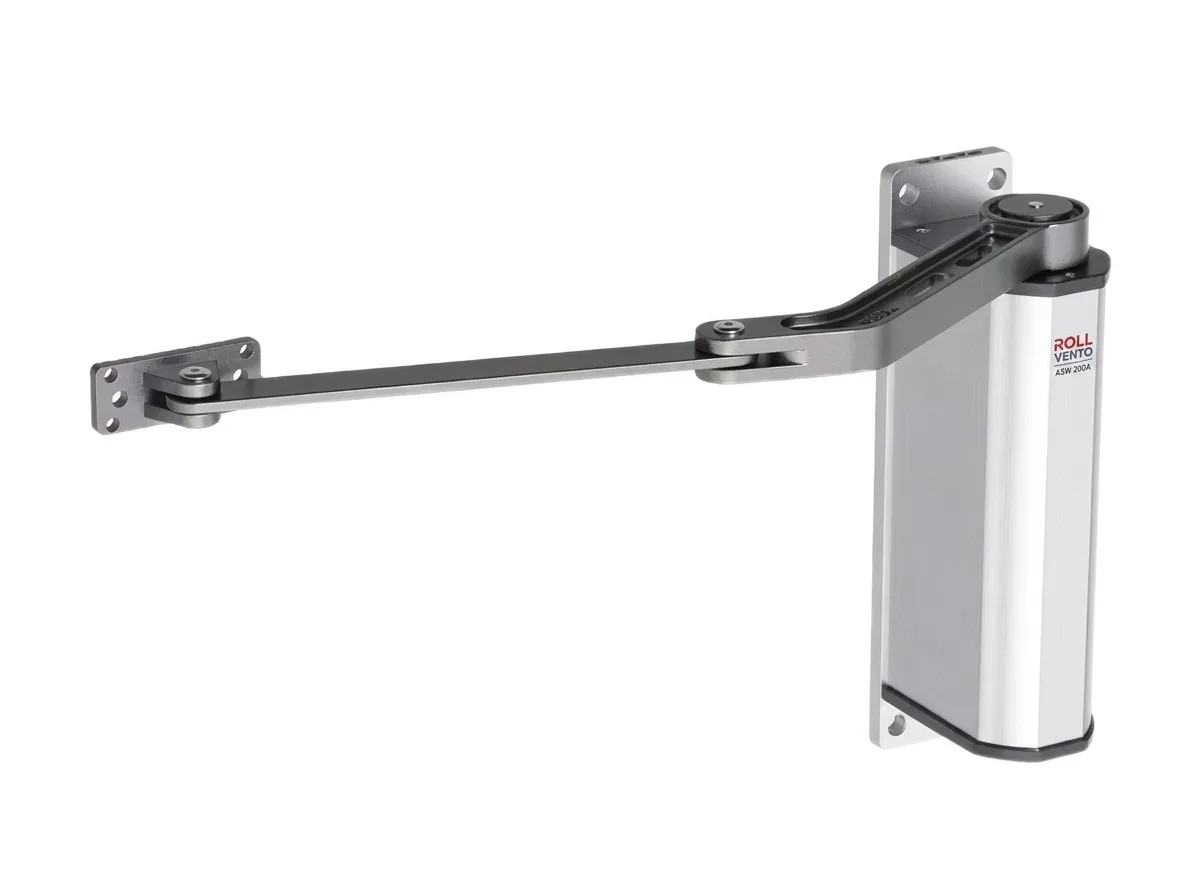

ASW-200A

Adjustable 0-60 W
AC 220 V / 110 V

Arm-type swing door opener for doors to 200 kg, with motor power adjustable from 0 to 60 W.

Max door weight: 200 kg
Motor power: Adjustable 0-60 W

Quote

Selection

How to choose a automatic door operator

Sliding operators suit most commercial entrances; swing operators are used for single doors, corridors and accessibility retrofits.
Specify leaf weight and clear opening width; capacity is quoted per leaf.
Healthcare and egress doors need battery backup and fire-alarm breakout integration.
Choose sensors for the environment: microwave for approach detection, infrared presence sensors for safety in the threshold.

Read the full guide

Installation

Installation notes

The header is fixed to the structural lintel; glass leaves hang from the carriage on the track.
Sensors are mounted on the header and aimed per the sensor manual; the safety zone must cover the full leaf travel.
Commissioning sets opening speed, hold-open time and reduced-opening mode.

Installation is carried out by authorised Rollvento dealers and installers. Wiring diagrams and sizing support are available from technical support.

FAQ

Automatic Door Operators: common questions

Do you sell automatic door operators as standard models?

Automatic door operators are project-engineered rather than stock catalogue items. Share your door dimensions, leaf weight and site requirements and Rollvento engineering will specify a suitable operator package.

Are automatic doors safe for pedestrians?

Operators are fitted with presence and motion sensors that hold the door open while anyone is in the threshold, and low-energy modes for accessibility. Correct sensor placement during commissioning is essential.
