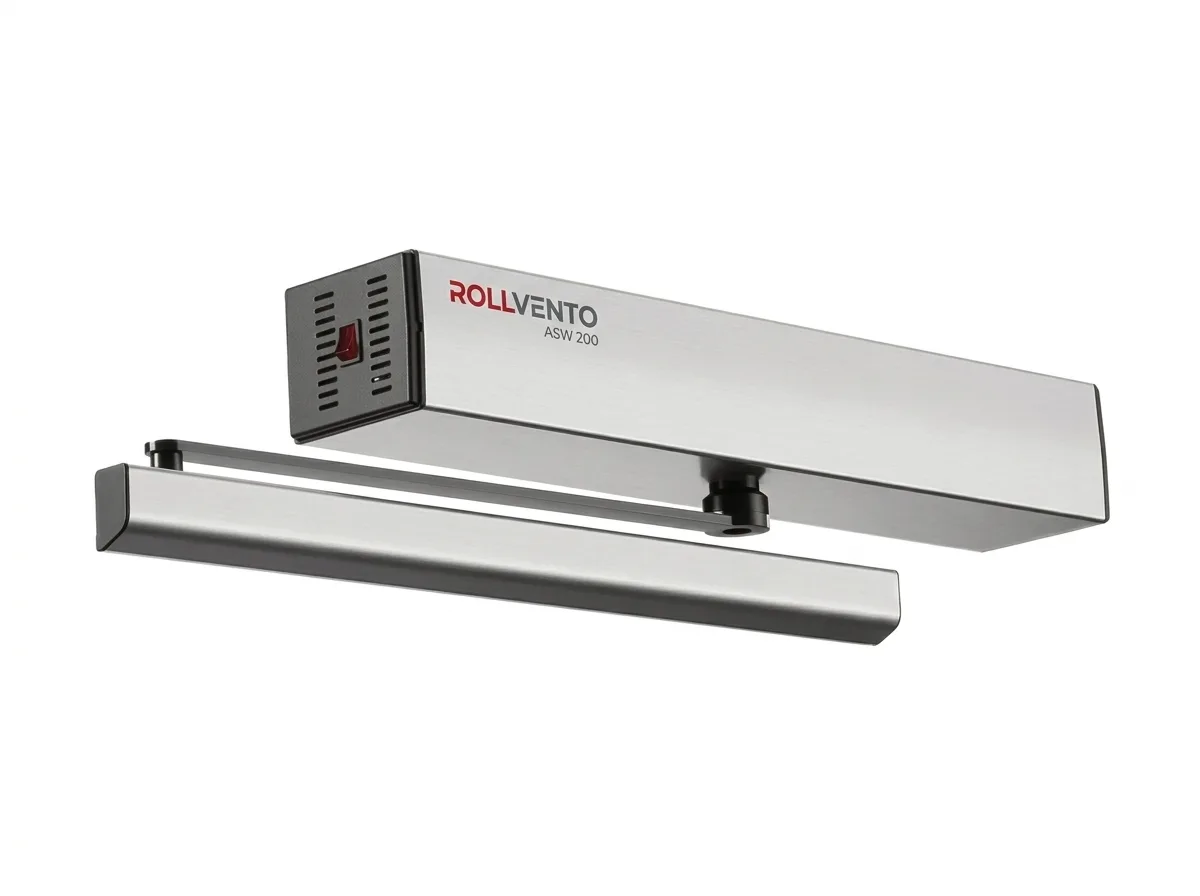

Rollvento ASW-200 Automatic Swing Door Opener
Model ASW-200
Overhead swing door opener for doors to 200 kg, with a choice of pull arm or push arm.

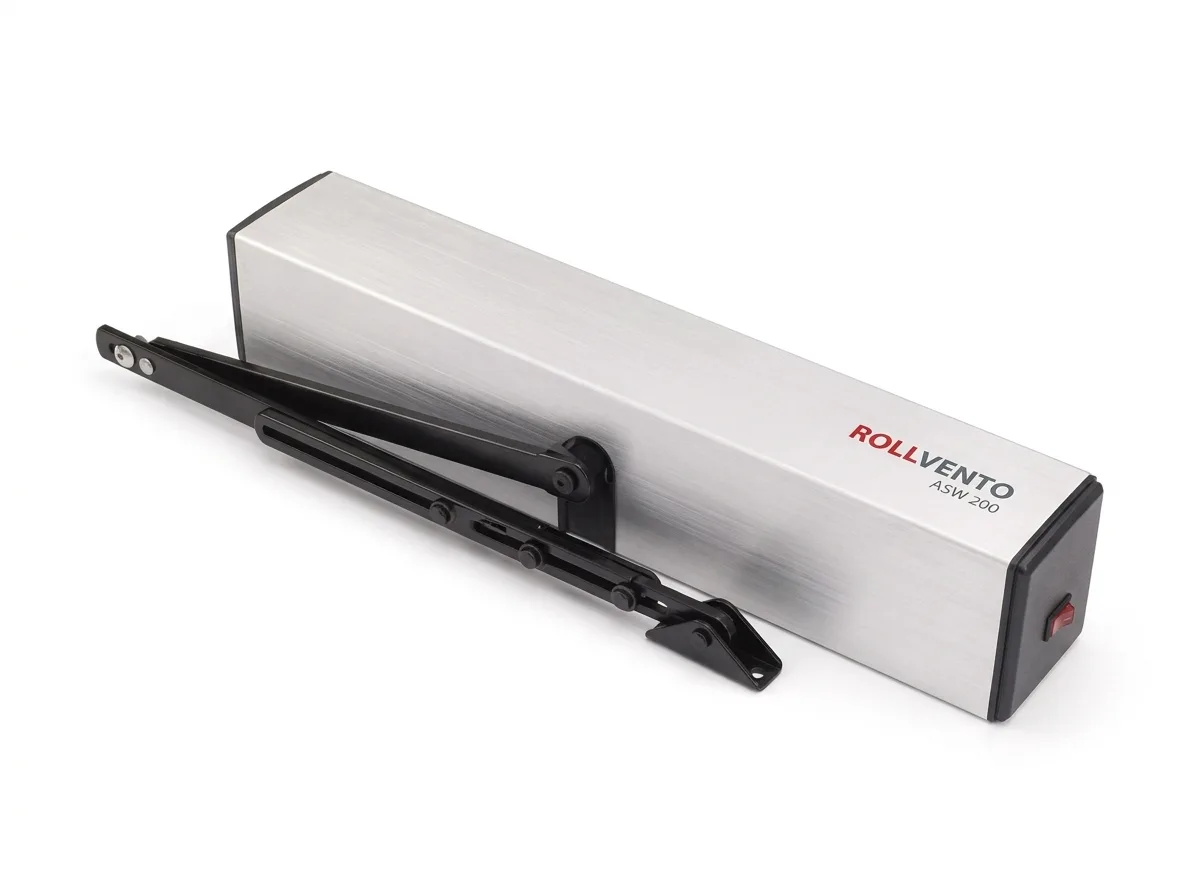

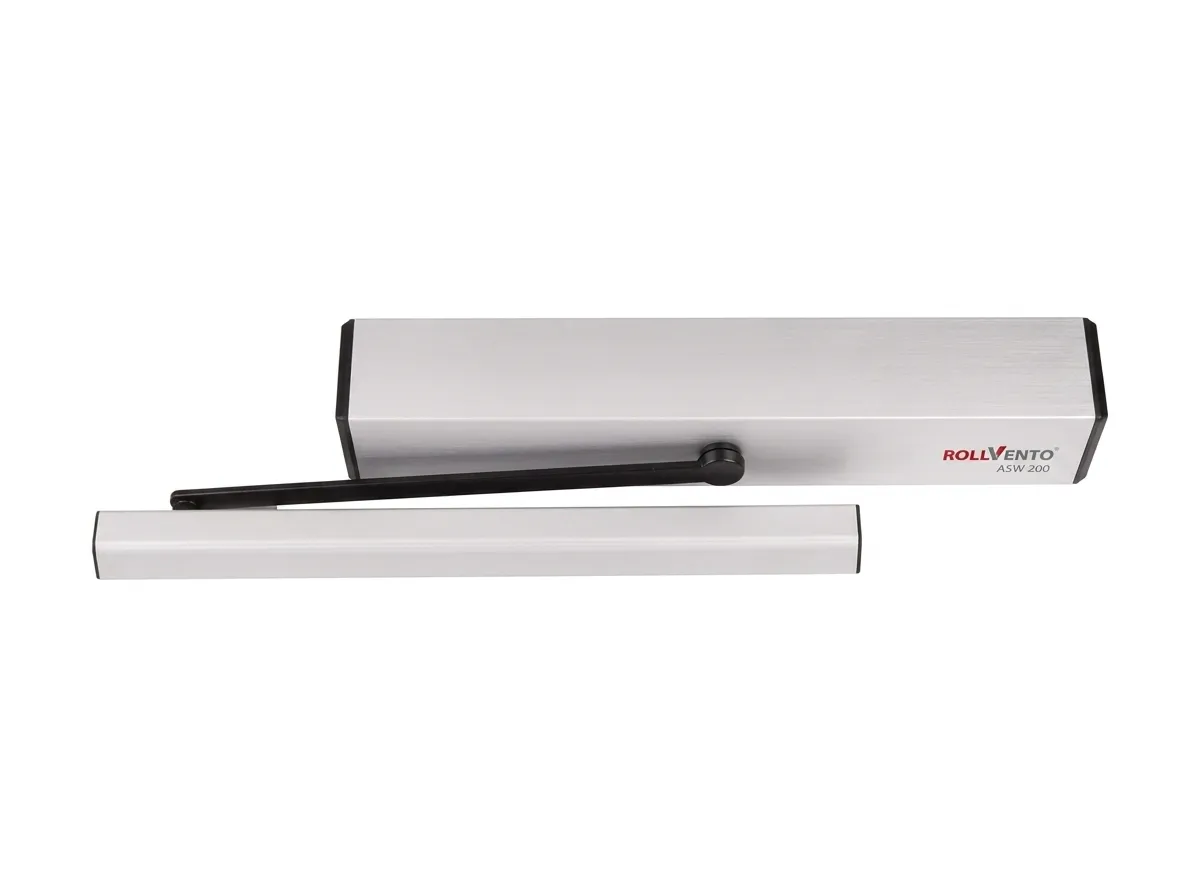

- Pull arm or push arm configuration
- Doors to 100 kg or 200 kg
- Speed adjustable across the full 1-100 % range
- Standby draw below 1 W
- Max door weight
- 100 kg / 200 kg
- Motor power
- 30 W / 60 W
What the ASW-200 delivers
Overhead operator for automatic swing doors, supplied with either a pull arm or a push arm. The 24 V DC motor runs from a 220 V or 110 V AC supply, draws 30 W or 60 W depending on the door, and falls below 1 W on standby. Opening speed is adjustable across the full range, and obstacle rebound with anti-collision is built in.
- Obstacle rebound with anti-collision
Technical information
Values as published in Rollvento product data, grouped for quick reference. Open a section to view details; confirm site-specific parameters with engineering before ordering.
Get a Quote- Motor
- 24 V DC ±10 %, 5 A

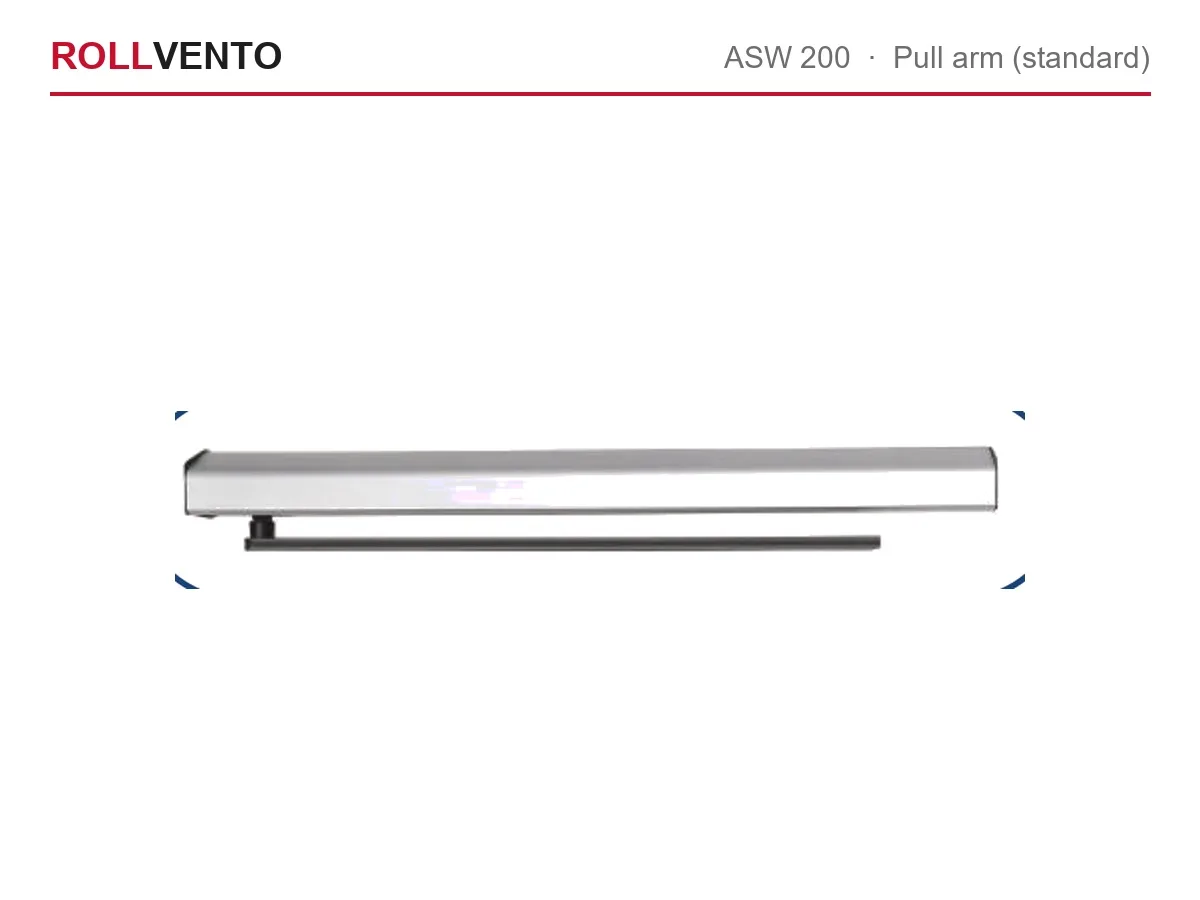

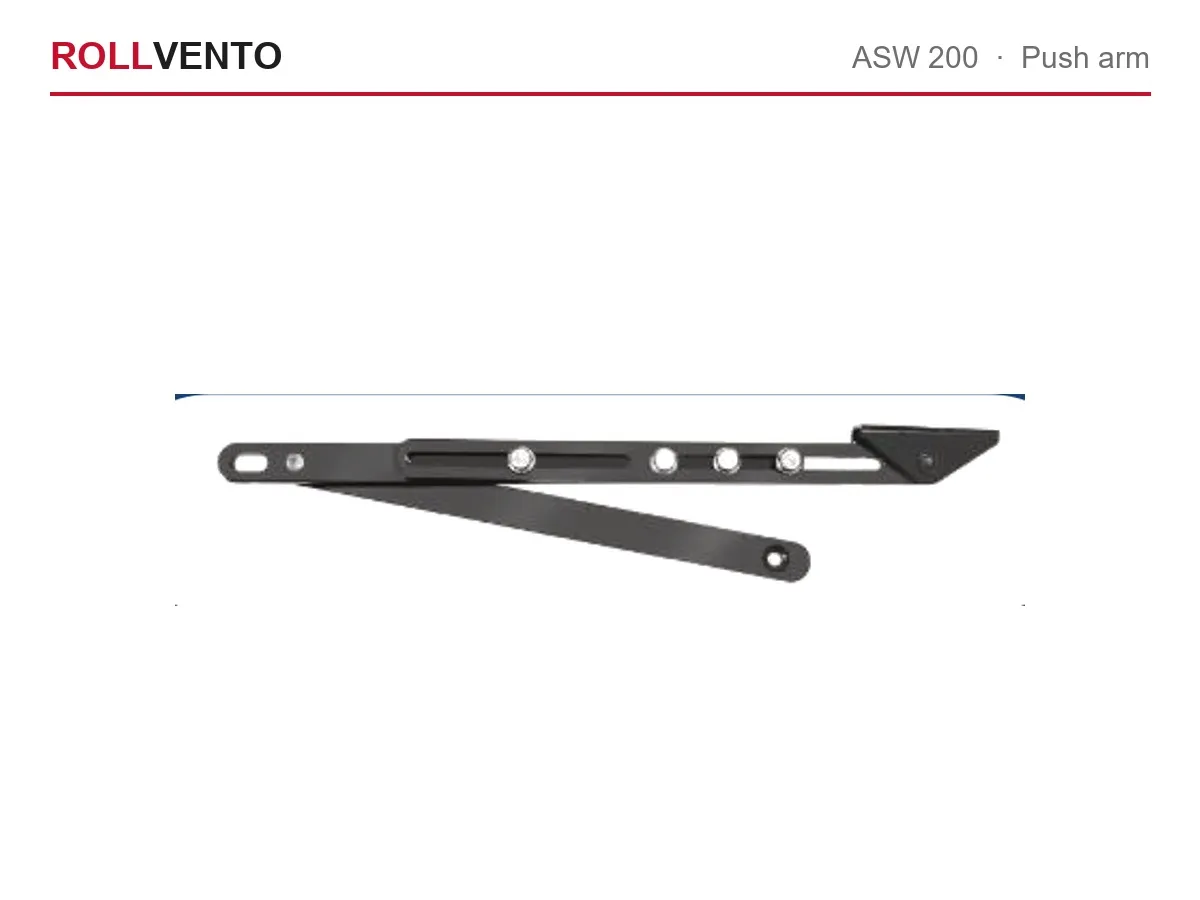

- Arm options
- Pull arm / push arm
- Max door weight
- 100 kg / 200 kg
- Speed
- Adjustable 1-100 %
- Temperature
- -20 to +80 °C
- Motor power
- 30 W / 60 W
- Power supply
- AC 220 V / 110 V
- Standby power
- < 1 W
- Safety
- Obstacle rebound, anti-collision
- Automatic swing doors
- The header is fixed to the structural lintel; glass leaves hang from the carriage on the track.

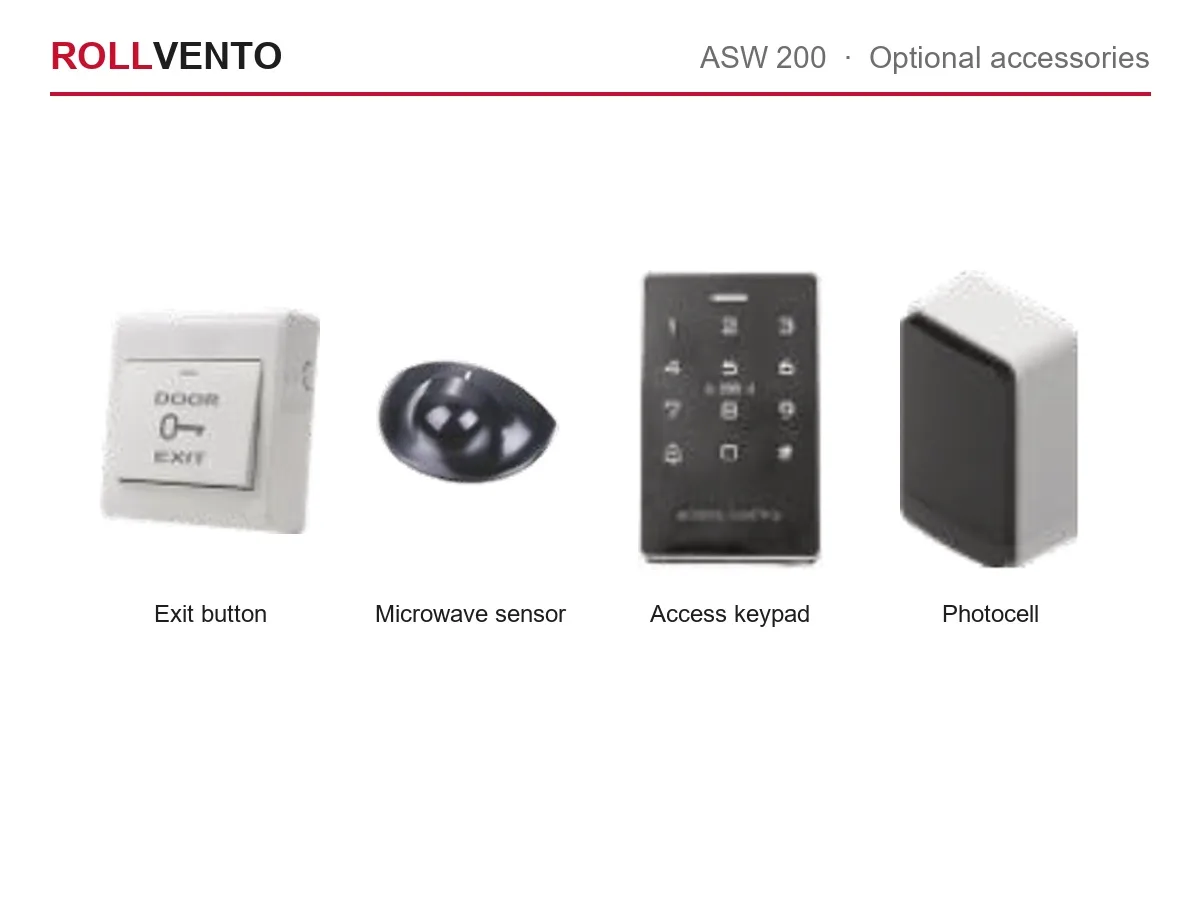

- Sensors are mounted on the header and aimed per the sensor manual; the safety zone must cover the full leaf travel.
- Commissioning sets opening speed, hold-open time and reduced-opening mode.
ASW-200: frequently asked questions
What power supply does the ASW-200 need?
The ASW-200 runs on AC 220 V / 110 V.
Where is the ASW-200 used?
Typical applications: Automatic swing doors.
Do you sell automatic door operators as standard models?
Automatic door operators are project-engineered rather than stock catalogue items. Share your door dimensions, leaf weight and site requirements and Rollvento engineering will specify a suitable operator package.
Are automatic doors safe for pedestrians?
Operators are fitted with presence and motion sensors that hold the door open while anyone is in the threshold, and low-energy modes for accessibility. Correct sensor placement during commissioning is essential.
