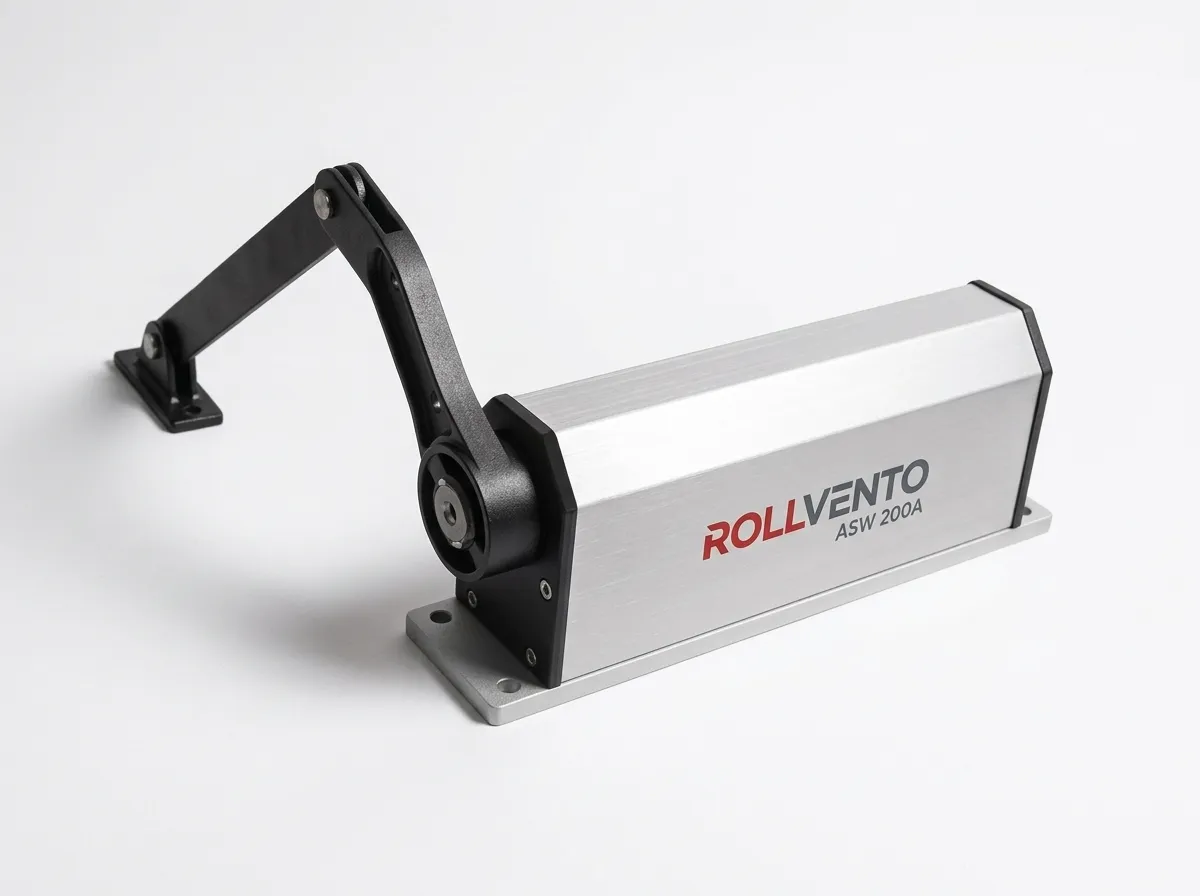

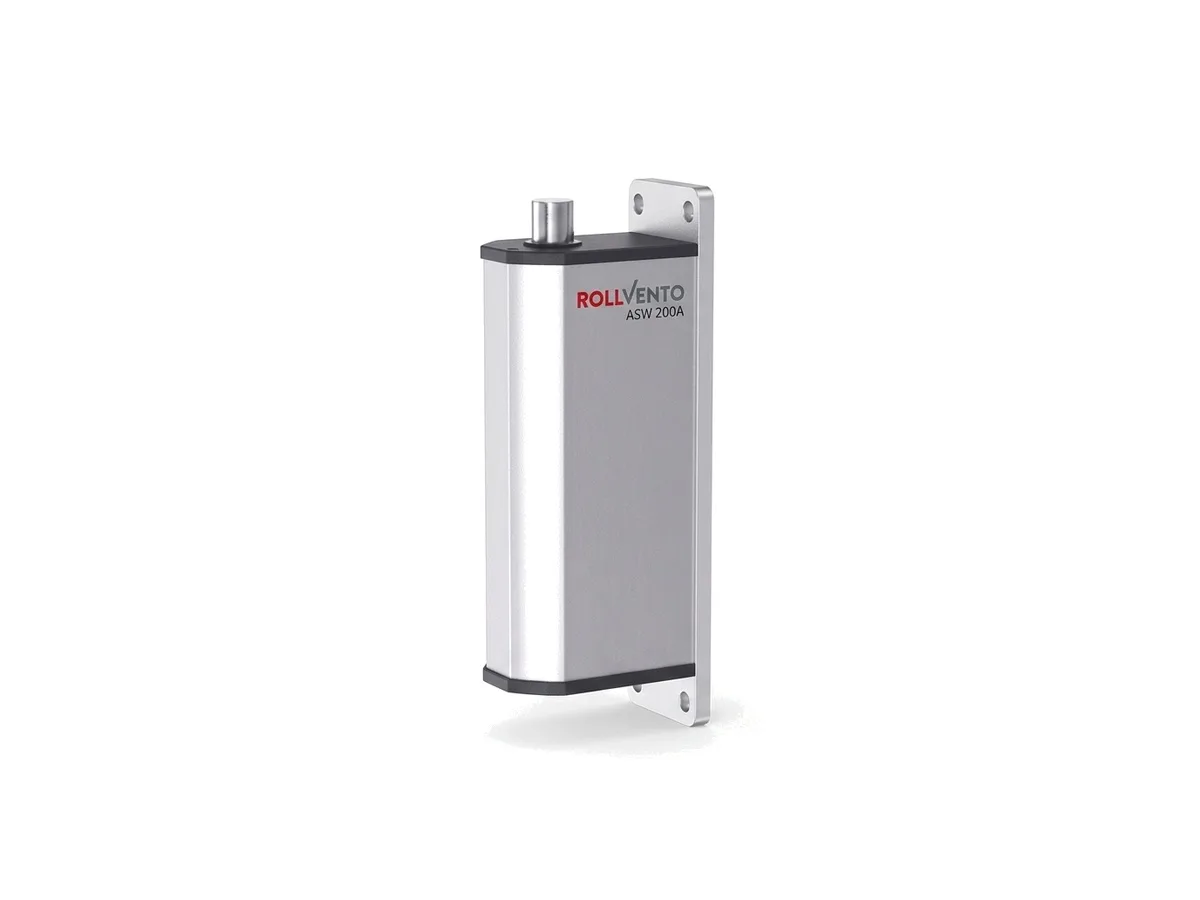

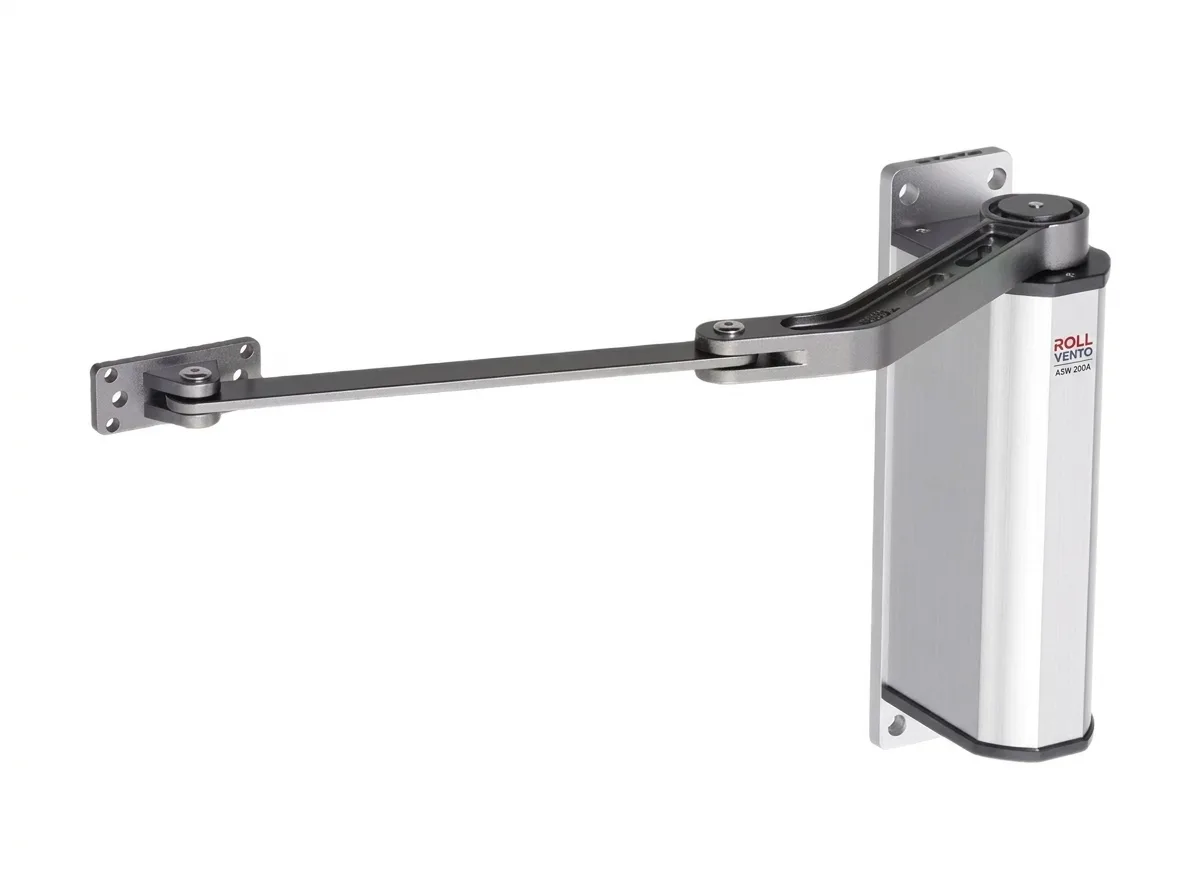

Rollvento ASW-200A Automatic Swing Door Opener (Arm Type)

Name: Rollvento ASW-200A Automatic Swing Door Opener (Arm Type)
Brand: Rollvento
SKU: ASW-200A

What the ASW-200A delivers

The arm-type swing door opener, supplied with a pull arm. The 24 V DC motor runs from a 220 V or 110 V AC supply with motor power adjustable from 0 to 60 W, and drops below 1 W on standby. Rated for doors up to 200 kg, with adjustable speed and built-in obstacle rebound and anti-collision.

Obstacle rebound with anti-collision

Technical information

Values as published in Rollvento product data, grouped for quick reference. Open a section to view details; confirm site-specific parameters with engineering before ordering.

Get a Quote

6 sections · 13 items

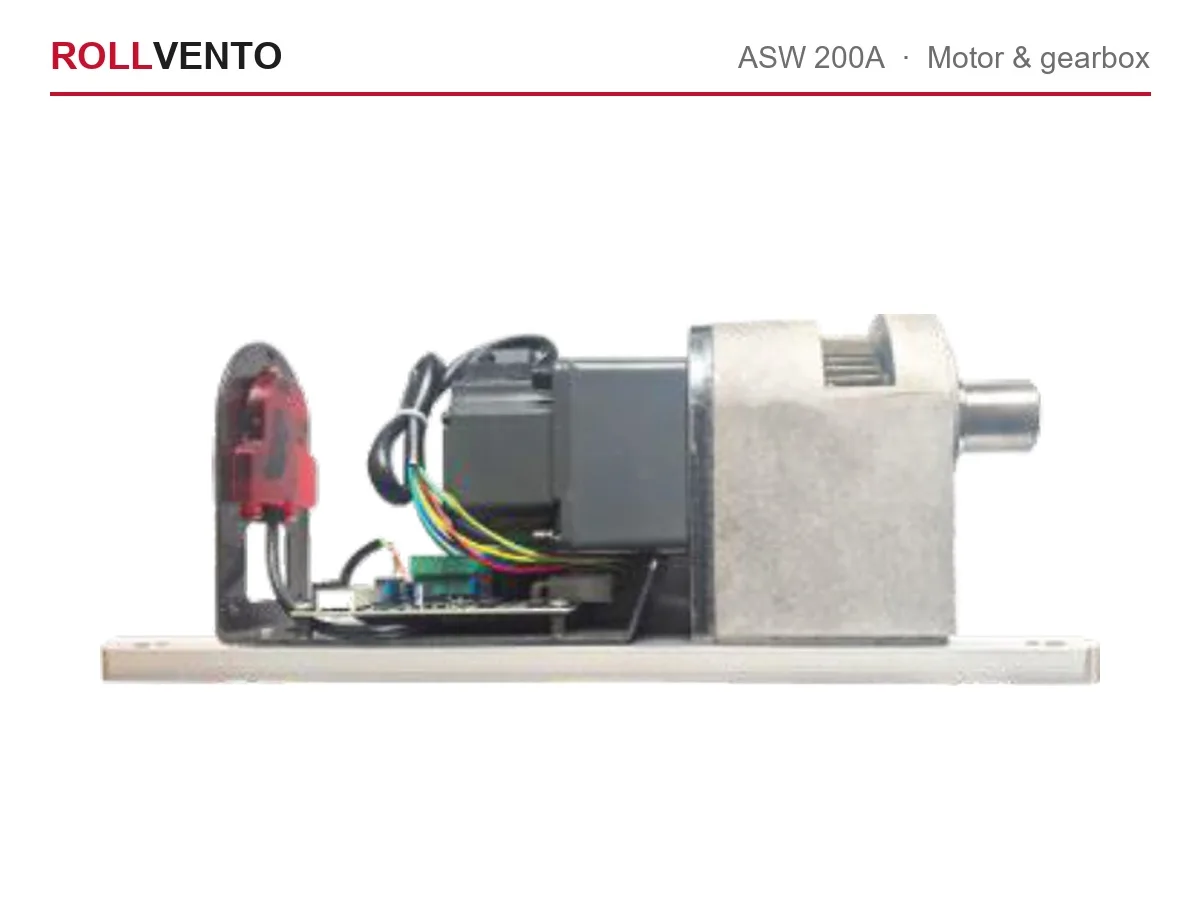

Motor: 24 V DC ±10 %, 5 A

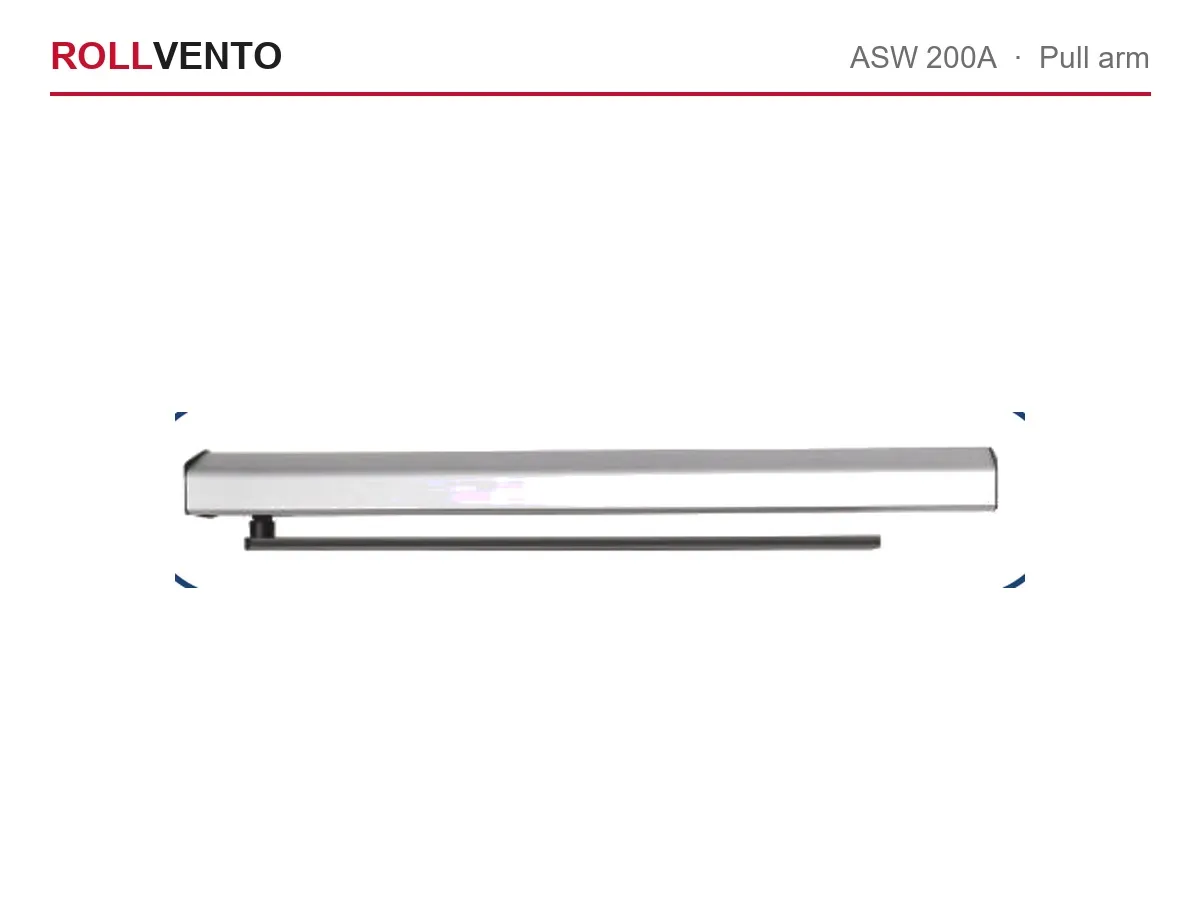

Arm: Pull arm

Max door weight: 200 kg
Speed: Adjustable 1-100 %
Temperature: -20 to +80 °C

Motor power: Adjustable 0-60 W
Power supply: AC 220 V / 110 V
Standby power: < 1 W

Safety: Obstacle rebound, anti-collision

Automatic swing doors

The header is fixed to the structural lintel; glass leaves hang from the carriage on the track.

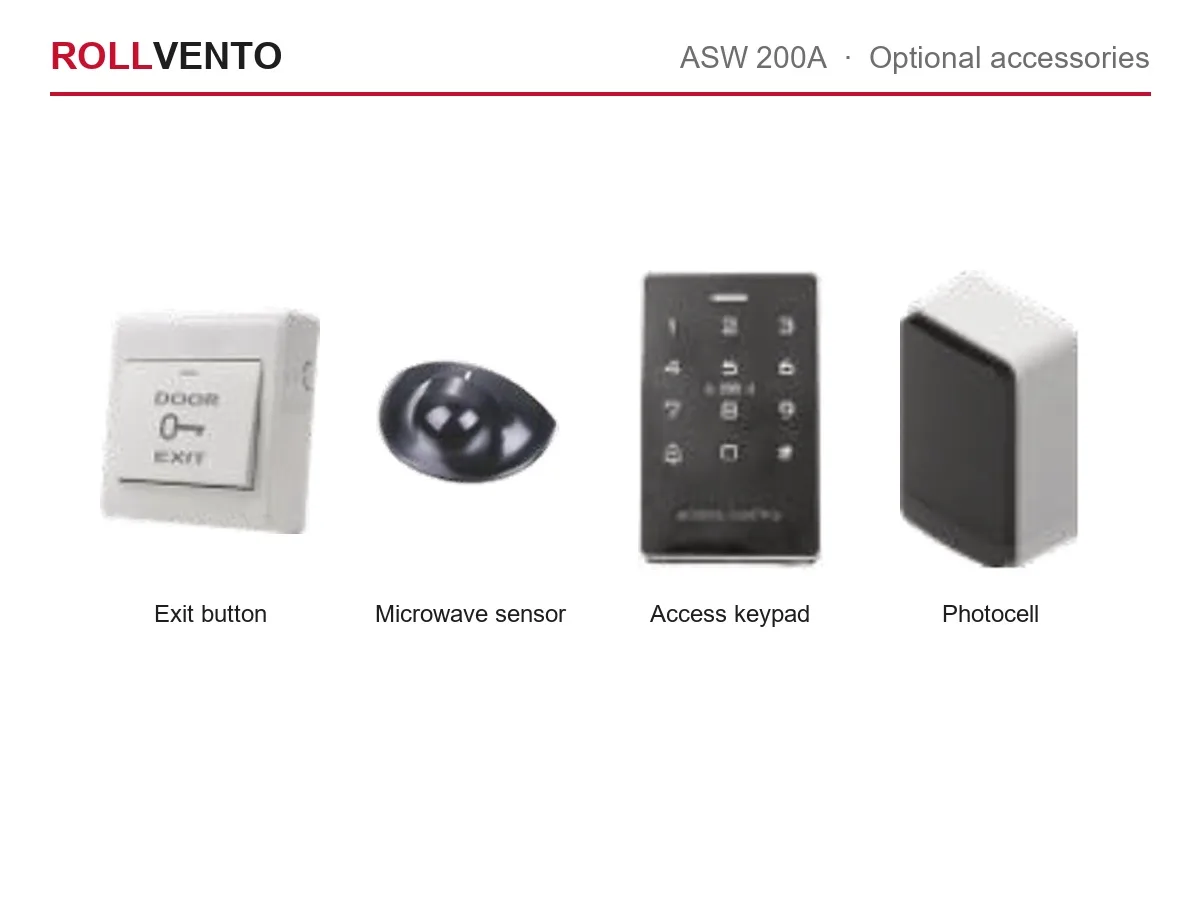

Sensors are mounted on the header and aimed per the sensor manual; the safety zone must cover the full leaf travel.
Commissioning sets opening speed, hold-open time and reduced-opening mode.

FAQ

ASW-200A: frequently asked questions

What power supply does the ASW-200A need?

The ASW-200A runs on AC 220 V / 110 V.

Where is the ASW-200A used?

Typical applications: Automatic swing doors.

Do you sell automatic door operators as standard models?

Automatic door operators are project-engineered rather than stock catalogue items. Share your door dimensions, leaf weight and site requirements and Rollvento engineering will specify a suitable operator package.

Are automatic doors safe for pedestrians?

Operators are fitted with presence and motion sensors that hold the door open while anyone is in the threshold, and low-energy modes for accessibility. Correct sensor placement during commissioning is essential.
