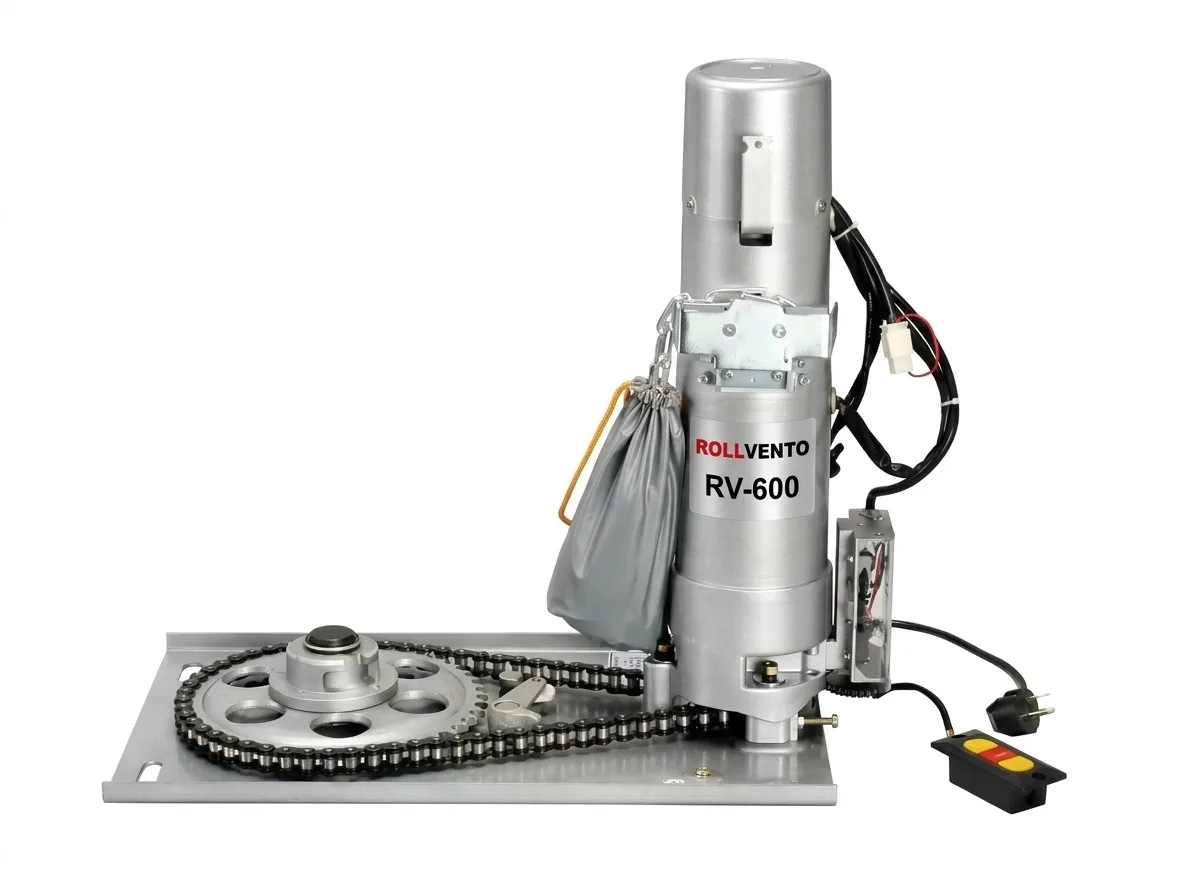

RV-600 Single Phase Rolling Shutter Motor

Name: RV-600 Single Phase Rolling Shutter Motor
Brand: Rollvento
SKU: RV-600

What the RV-600 delivers

The Rollvento RV-600 is an industrial-grade single-phase rolling shutter drive engineered to effortlessly operate commercial shutters, showrooms, and warehouse partitions up to 600 kg. Powered by a 300W copper-wound motor delivering 300 N·m output torque with manual chain override and electromagnetic safety brake.

Manual chain pull override for smooth emergency operation during power cuts
Complete standard kit including mounting brackets, remote controls, lock box, and push button station

Technical information

Values as published in Rollvento product data, grouped for quick reference. Open a section to view details; confirm site-specific parameters with engineering before ordering.

Get a Quote

5 sections · 27 items

Lifting Capacity: 600 kg
Torque: 300 N·m
Speed: 8–10 RPM
Max. Lifting Height: 6.5 m
Duty Cycle: S2 – 10 min

Power: 300 W
Voltage: 220 V
Phase: Single Phase
Frequency: 50 Hz
Rated Current: 3.1 A
Insulation Class: Class B

Commercial showrooms & retail storefronts
Supermarkets & shopping mall shutters
Factory logistics doors & warehouse bays
Perimeter security roller grilles

Mounting Brackets & Bearing Plate
2x Wireless Remote Controls
Receiver / Control Board
3-Button Wall Push Button Switch
External Lock Box with Keys
Manual Chain (Emergency Hand Operation)
Installation Hardware & Running Capacitor

The motor mounts on the shutter bracket plate on either side of the roller; left- or right-hand mounting is set at installation.
The drive sprocket connects to the shaft sprocket with a roller chain; alignment must be checked so the chain runs straight under load.
Upper and lower travel limits are set on the limit-switch dials after the curtain has been fitted to the roller.
The manual chain must hang clear of the curtain and be reachable from floor level with the power isolated.
A dedicated supply with an isolator and correctly rated MCB is required; three-phase units need phase-sequence verification before first run.

FAQ

RV-600: frequently asked questions

What is the lifting capacity of the RV-600?

The RV-600 is rated for 600 kg.

What is the output torque of the RV-600?

The RV-600 delivers 300 N·m output torque.

What power supply does the RV-600 need?

The RV-600 runs on 220 V (Single Phase).

What is included with the RV-600?

Standard supply includes: Mounting Brackets & Bearing Plate, 2x Wireless Remote Controls, Receiver / Control Board, 3-Button Wall Push Button Switch, External Lock Box with Keys, Manual Chain (Emergency Hand Operation), Installation Hardware & Running Capacitor.

Where is the RV-600 used?

Typical applications: Commercial showrooms & retail storefronts, Supermarkets & shopping mall shutters, Factory logistics doors & warehouse bays, Perimeter security roller grilles.

What is a rolling shutter motor?

A rolling shutter motor is a side-mounted electromechanical drive that turns the shutter shaft through a gearbox and chain to raise and lower the curtain. It replaces manual pull-chains or spring balancing and is rated by curtain weight (kg), output torque (N·m) and supply phase.

How do I know which capacity I need?

Weigh or calculate the curtain weight (slat weight per square metre × curtain area, plus the bottom rail). Choose the next capacity above that figure with at least a 15–20% margin. Rollvento single-phase models cover 400–1000 kg and three-phase models cover 1500–2000 kg.
