RV-2000 Three Phase Rolling Shutter Motor
Model RV-20002 TON 3-PHASE
2000 kg ultra heavy industrial three-phase 380V electromechanical rolling shutter motor with 2450 N·m output torque.
- 2000 kg massive lifting capacity with 1500 W 380V Three Phase motor
- Ultra-high output torque of 2450 N·m for heavy-gauge curtain profiles
- Maximum lifting height of up to 9 metres
- Output rotation speed of 8–10 RPM
- Lifting Capacity
- 2000 kg
- Power
- 1500 W
- Torque
- 2450 N·m
- Max. Lifting Height
- 9 m
What the RV-2000 delivers
The Rollvento RV-2000 is our maximum-capacity three-phase industrial rolling shutter drive, engineered to lift heavy curtains and high-span security shutters up to 2000 kg. Powered by a 1500 W 380 V three-phase motor producing 2450 N·m output torque with a max lifting height of 9 metres.
- Class B insulation with S2 – 20 min duty cycle rating

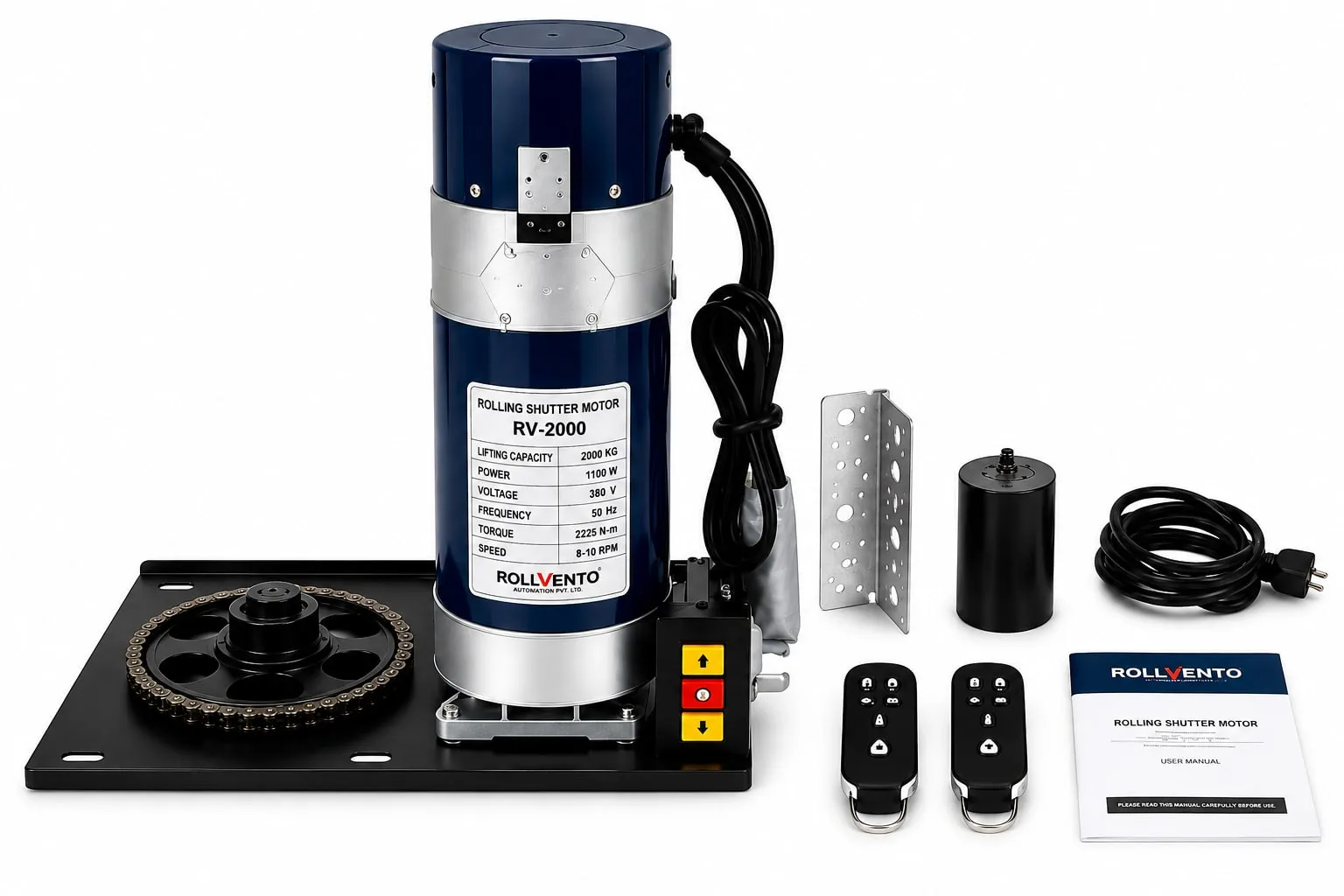

- Complete standard kit with mounting brackets, control board, remote controls, lock box, and manual chain
Technical information
Values as published in Rollvento product data, grouped for quick reference. Open a section to view details; confirm site-specific parameters with engineering before ordering.
Get a Quote- Lifting Capacity
- 2000 kg
- Torque
- 2450 N·m
- Max. Lifting Height
- 9 m
- Speed
- 8–10 RPM
- Duty Cycle
- S2 – 20 min
- Power
- 1500 W
- Voltage
- 380 V
- Phase
- Three Phase
- Frequency
- 50 Hz
- Rated Current
- 4.0 A
- Insulation Class
- Class B
- Factories
- Warehouses
- Shops
- Malls
- Loading Docks
- Parking Areas
- Mounting Brackets
- Remote Controls
- Receiver / Control Board
- Push Button Switch
- Lock Box with Keys
- Manual Chain (Hand Operation)
- Installation Hardware
- The motor mounts on the shutter bracket plate on either side of the roller; left- or right-hand mounting is set at installation.
- The drive sprocket connects to the shaft sprocket with a roller chain; alignment must be checked so the chain runs straight under load.
- Upper and lower travel limits are set on the limit-switch dials after the curtain has been fitted to the roller.
- The manual chain must hang clear of the curtain and be reachable from floor level with the power isolated.
- A dedicated supply with an isolator and correctly rated MCB is required; three-phase units need phase-sequence verification before first run.
RV-2000: frequently asked questions
What is the lifting capacity of the RV-2000?
The RV-2000 is rated for 2000 kg.
What is the output torque of the RV-2000?
The RV-2000 delivers 2450 N·m output torque.
What power supply does the RV-2000 need?
The RV-2000 runs on 380 V (Three Phase).
What is included with the RV-2000?
Standard supply includes: Mounting Brackets, Remote Controls, Receiver / Control Board, Push Button Switch, Lock Box with Keys, Manual Chain (Hand Operation), Installation Hardware.
Where is the RV-2000 used?
Typical applications: Factories, Warehouses, Shops, Malls, Loading Docks, Parking Areas.
What is a rolling shutter motor?
A rolling shutter motor is a side-mounted electromechanical drive that turns the shutter shaft through a gearbox and chain to raise and lower the curtain. It replaces manual pull-chains or spring balancing and is rated by curtain weight (kg), output torque (N·m) and supply phase.
How do I know which capacity I need?
Weigh or calculate the curtain weight (slat weight per square metre × curtain area, plus the bottom rail). Choose the next capacity above that figure with at least a 15–20% margin. Rollvento single-phase models cover 400–1000 kg and three-phase models cover 1500–2000 kg.
Other rolling shutter motors
Request a quotation for the RV-2000
Tell us the site, quantity and any accessories you need. Dealer and project pricing available.
