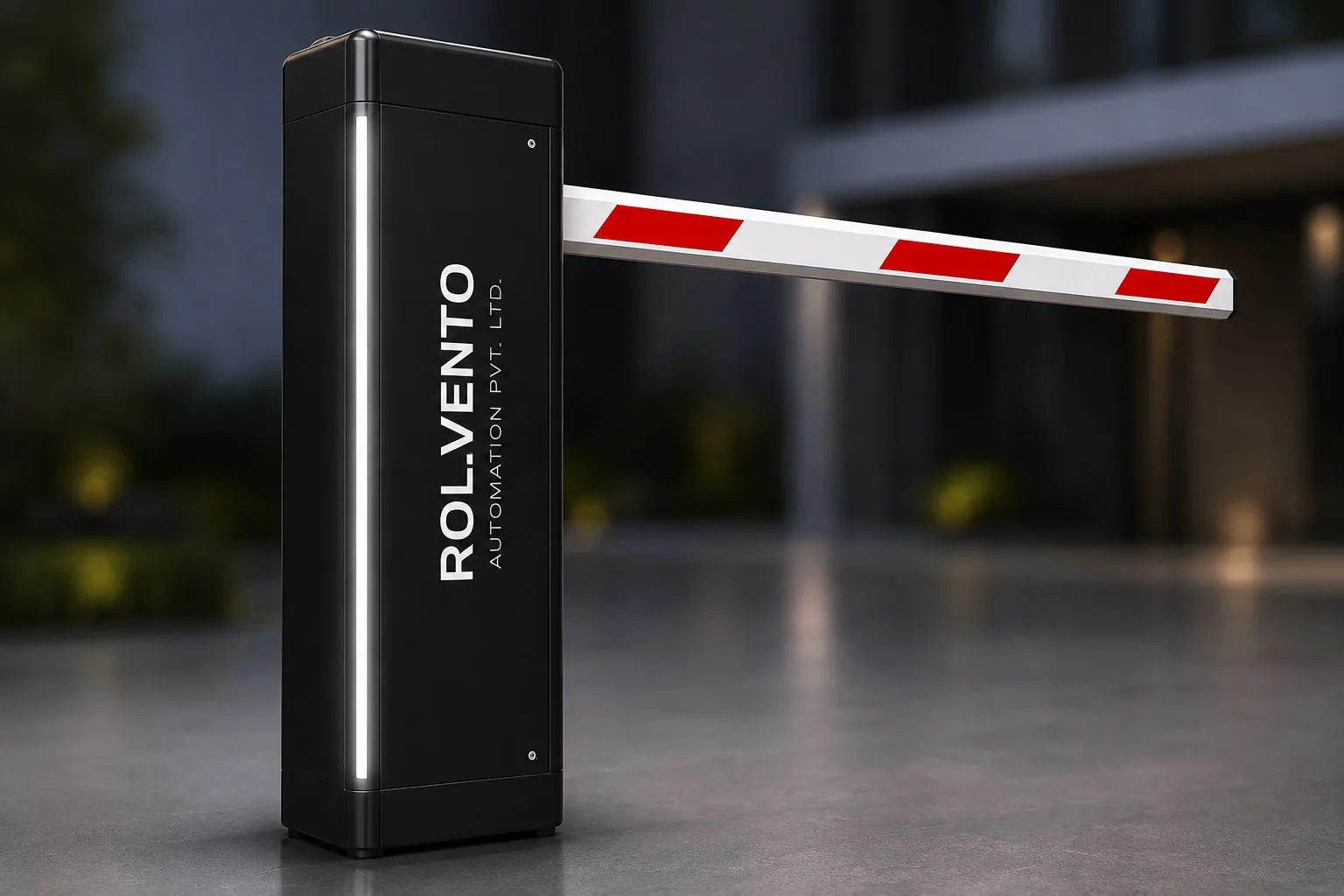

CSEDZ103S Servo Motor Barrier Gate
Model CSEDZ103S
Ultra-fast 0.9s DC 24V servo barrier gate with 3–6m straight boom, cast aluminium mechanism, and 10 million cycle MTBF.
- Advanced DC 24V Servo Motor for precise, powerful, and ultra-quiet operation
- Ultra-fast 0.9 Sec fast operation for maximum vehicle throughput

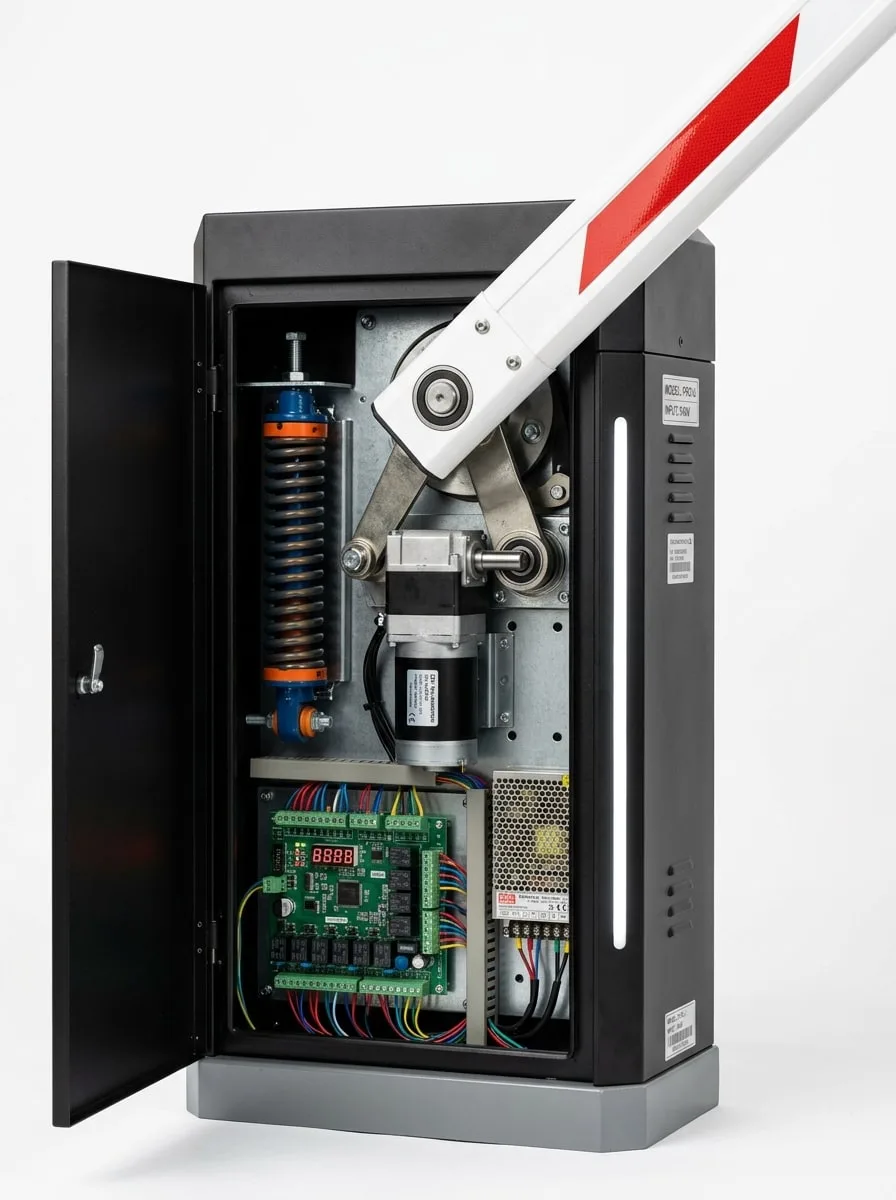

- Heavy-duty cast aluminium mechanism ensuring superior mechanical durability
- Industry-leading 10 Million Times MTBF (Mean Time Between Failures) lifespan
- Motor Type
- DC 24V Servo Motor
- Operation Speed
- 0.9 Sec
- Boom Type
- Straight Boom
- Boom Length
- 3 – 6 m
What the CSEDZ103S delivers
The Rollvento CSEDZ103S utilizes advanced permanent magnet DC 24V servo motor technology delivering ultra-fast 0.9-second opening speeds, high precision, and extreme reliability. Engineered with a rugged cast aluminium mechanism for demanding high-traffic toll, commercial, and industrial access portals.
- Straight boom arm configuration supporting 3m to 6m lengths
- Integrated auto-rebound obstacle anti-smash protection and intelligent soft start/stop
- Built for safety, built for durability, built for high performance
Technical information
Values as published in Rollvento product data, grouped for quick reference. Open a section to view details; confirm site-specific parameters with engineering before ordering.
Get a Quote- Motor Type
- DC 24V Servo Motor
- Boom Type
- Straight Boom
- Core Features
- High Speed, High Precision, Long Life
- Standard Kit Included
- Barrier Motor, Base Plate, Boom Arm, 2x Remotes, Hardware
- Operation Speed
- 0.9 Sec
- Boom Length
- 3 – 6 m
- MTBF (Service Life)
- 10 Million Times (10,000,000 Cycles)
- Power Supply
- DC 24V
- Mechanism Material
- Cast Aluminium
- Residential Complexes
- Apartment Buildings
- Factories & Industries
- Commercial Properties
- Institutions & Campuses
- Highway Toll Plazas & Commercial Parking
- A concrete foundation is cast with conduits for power and control cables; the cabinet is anchored with foundation bolts.
- The boom is fitted to the flange, balanced with the internal spring or counterweight per the manual, and open/closed limits are checked.
- Loop detector cables are cut into the road surface on the approach and safety side of the barrier.
- Control inputs (push button, RFID, loop, photocell) are wired to the board and auto-close timing is set.
- The manual release is tested so the boom can be raised by hand in a power failure.
CSEDZ103S: frequently asked questions
What power supply does the CSEDZ103S need?
The CSEDZ103S runs on DC 24V.
Where is the CSEDZ103S used?
Typical applications: Residential Complexes, Apartment Buildings, Factories & Industries, Commercial Properties, Institutions & Campuses, Highway Toll Plazas & Commercial Parking.
How do I choose a boom barrier?
Start with lane width (boom length), then traffic volume (opening speed and duty rating), then integration needs (loop detector, RFID, ANPR inputs). For toll plazas and busy commercial lanes choose the 10-million-cycle servo barrier; for parking, campuses and residential complexes the 5-million-cycle brushless DC barriers — including the no-spring CSEDZ40 — are usually appropriate.
What does MTBF mean on a barrier gate?
MTBF (mean time between failures) is expressed here as a cycle rating — the number of open/close operations the mechanism is designed for before major service. Higher figures indicate a mechanism intended for continuous high-traffic use.
