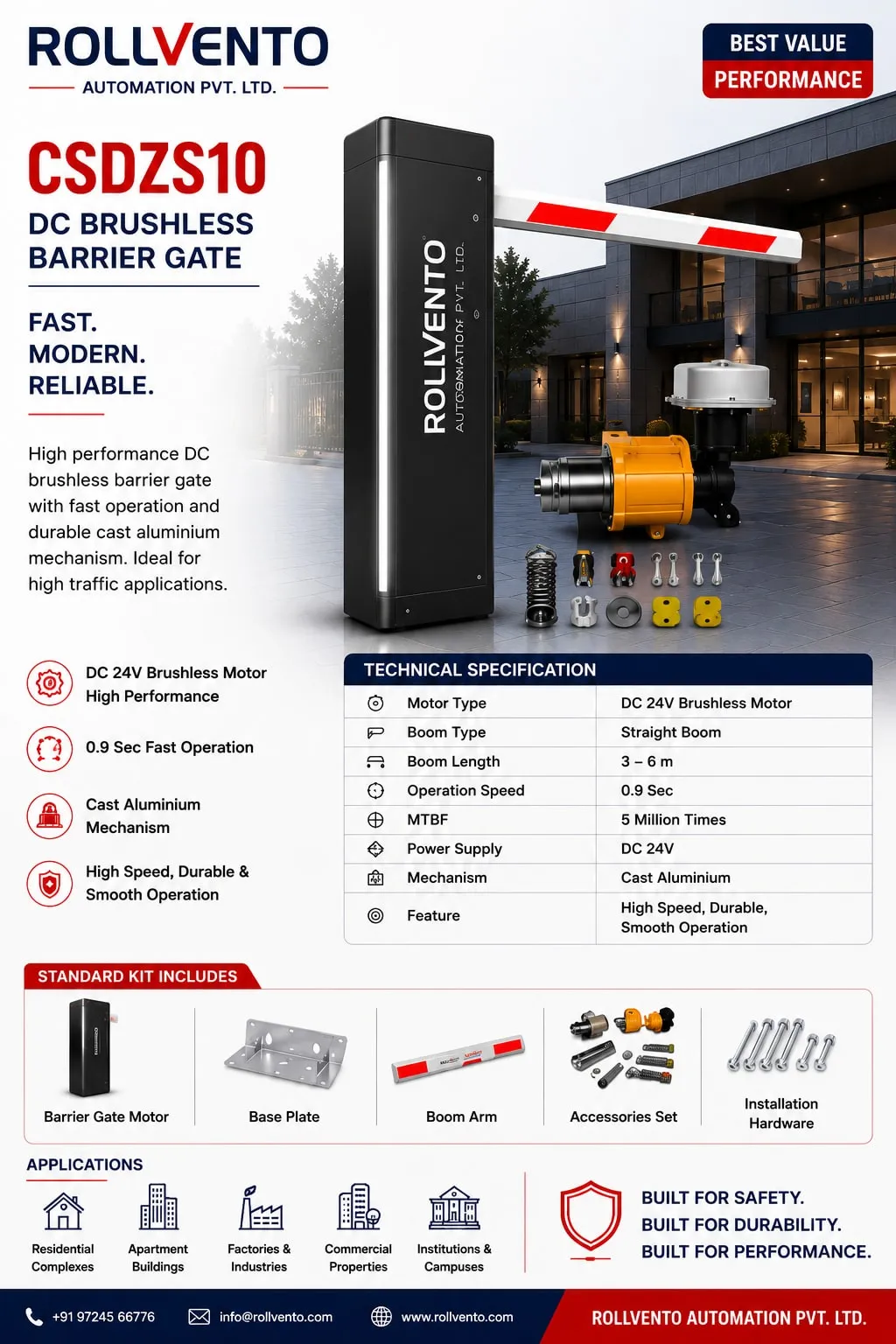

CSDZS10 DC Brushless Barrier Gate
Model CSDZS10
High-speed 0.9s DC 24V brushless boom barrier gate with 3–6m straight arm, cast aluminium mechanism, and 5 million MTBF.
- High Performance DC 24V Brushless Motor delivering high torque efficiency
- Ultra-fast 0.9 Sec fast operation for rapid lane clearance
- Heavy-duty cast aluminium mechanism for extreme mechanical endurance
- High reliability MTBF rating of 5 Million Times (5,000,000 Cycles)
- Motor Type
- DC 24V Brushless Motor
- Operation Speed
- 0.9 Sec
- Boom Type
- Straight Boom
- Boom Length
- 3 – 6 m
What the CSDZS10 delivers
The Rollvento CSDZS10 is a modern, fast, and highly dependable vehicle barrier gate driven by a high-performance DC 24V brushless motor. Built with a robust cast aluminium mechanism, it delivers 0.9-second opening speeds and a 5 million cycle MTBF rating for intensive vehicle clearance.
- Optimized for high-traffic residential, commercial, and industrial entrances
- Smooth sinusoidal acceleration and deceleration motion curve
- Fast, modern, and reliable vehicle boom control
Technical information
Values as published in Rollvento product data, grouped for quick reference. Open a section to view details; confirm site-specific parameters with engineering before ordering.
Get a Quote- Motor Type
- DC 24V Brushless Motor
- Boom Type
- Straight Boom
- Core Features
- High Speed, Durable, Smooth Operation
- Standard Kit Included
- Barrier Motor, Base Plate, Boom Arm, Accessories Set, Mounting Bolts
- Operation Speed
- 0.9 Sec
- Boom Length
- 3 – 6 m
- MTBF (Service Life)
- 5 Million Times (5,000,000 Cycles)
- Power Supply
- DC 24V
- Mechanism Material
- Cast Aluminium
- Residential Complexes
- Apartment Buildings
- Factories & Industries
- Commercial Properties
- Institutions & Campuses
- A concrete foundation is cast with conduits for power and control cables; the cabinet is anchored with foundation bolts.
- The boom is fitted to the flange, balanced with the internal spring or counterweight per the manual, and open/closed limits are checked.
- Loop detector cables are cut into the road surface on the approach and safety side of the barrier.
- Control inputs (push button, RFID, loop, photocell) are wired to the board and auto-close timing is set.
- The manual release is tested so the boom can be raised by hand in a power failure.
CSDZS10: frequently asked questions
What power supply does the CSDZS10 need?
The CSDZS10 runs on DC 24V.
Where is the CSDZS10 used?
Typical applications: Residential Complexes, Apartment Buildings, Factories & Industries, Commercial Properties, Institutions & Campuses.
How do I choose a boom barrier?
Start with lane width (boom length), then traffic volume (opening speed and duty rating), then integration needs (loop detector, RFID, ANPR inputs). For toll plazas and busy commercial lanes choose the 10-million-cycle servo barrier; for parking, campuses and residential complexes the 5-million-cycle brushless DC barriers — including the no-spring CSEDZ40 — are usually appropriate.
What does MTBF mean on a barrier gate?
MTBF (mean time between failures) is expressed here as a cycle rating — the number of open/close operations the mechanism is designed for before major service. Higher figures indicate a mechanism intended for continuous high-traffic use.
