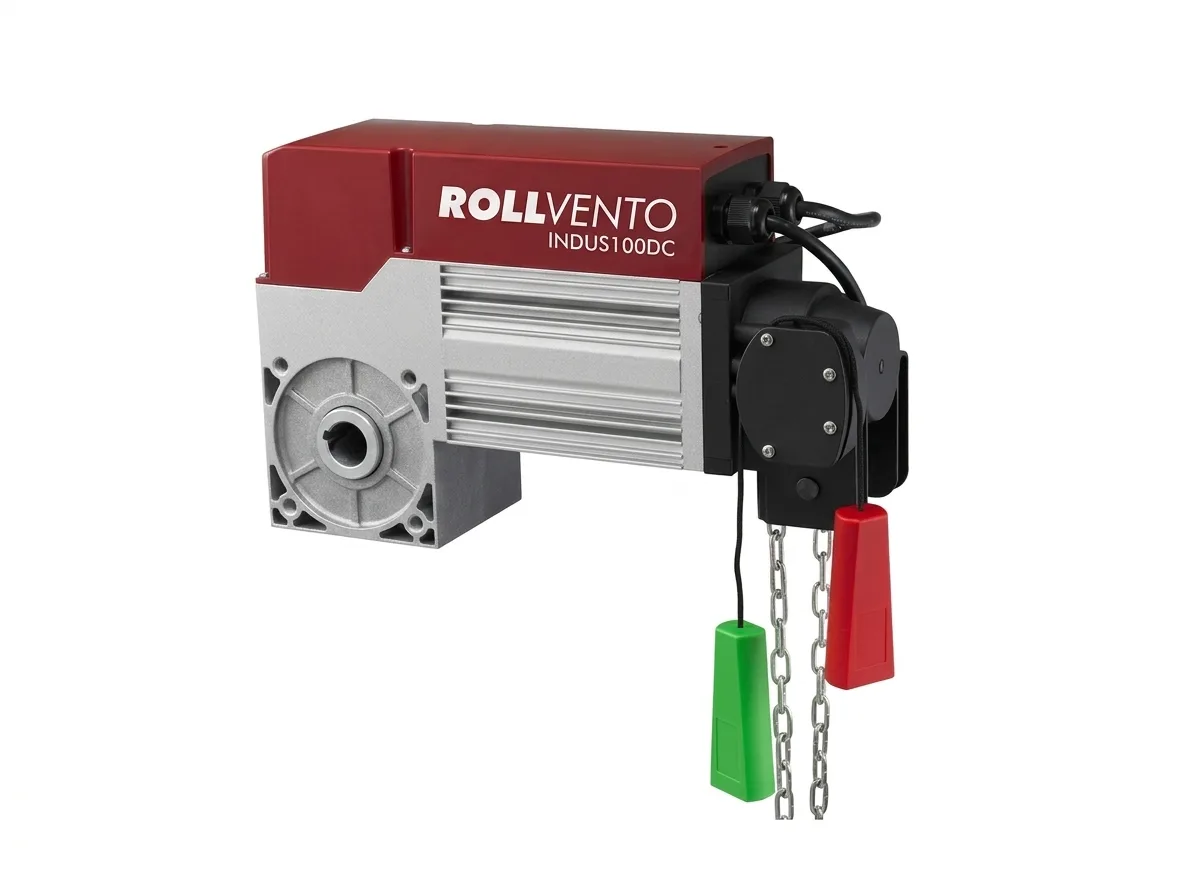

Rollvento INDUS100DC DC Industrial Door Motor
Model INDUS100DC
100 N·m DC industrial door motor on a 230 V supply, rated IP54 with a 19-turn limit switch range.
- 100 N·m rated torque at 22 r/min
- 0.8 kW motor on a 230 V 50 Hz supply
- 24 V DC control voltage
- IP54 protection, under 65 dB
- Rated torque
- 100 N·m
- Rated speed
- 22 r/min
- Motor power
- 0.8 kW
- Protection grade
- IP54
What the INDUS100DC delivers
A DC industrial door motor delivering 100 N·m at 22 r/min from a 230 V 50 Hz supply, with a 0.8 kW motor drawing 5.5 A and 24 V DC controls. Rated IP54, under 65 dB, with a 19-turn limit switch range and a 25.4 mm sleeve shaft.
- 25.4 mm sleeve shaft
Technical information
Values as published in Rollvento product data, grouped for quick reference. Open a section to view details; confirm site-specific parameters with engineering before ordering.
Get a Quote- Rated torque
- 100 N·m
- Rated speed
- 22 r/min
- S3 duty cycle
- 20 %
- S2 duty cycle
- 10 min
- Noise level
- < 65 dB
- Temperature range
- -20 to +45 °C
- Operating power
- 230 V, 50 Hz
- Motor power
- 0.8 kW
- Motor current
- 5.5 A
- Sleeve shaft
- 25.4 mm
- Protection grade
- IP54
- Control voltage
- 24 V DC
- Limit switch range
- 19 turns
- Distribution centres
- The door must be correctly spring-balanced before the motor is fitted; the motor is not designed to lift an unbalanced door.
- Direct-drive units slide onto the torsion shaft and are keyed; a torque arm prevents the motor body from rotating.
- Backplate units are bolted to the wall or door frame and connected to the shaft sprocket with a roller chain.
- Limits are set on the mechanical cam or programmed electronically at the open and closed positions.

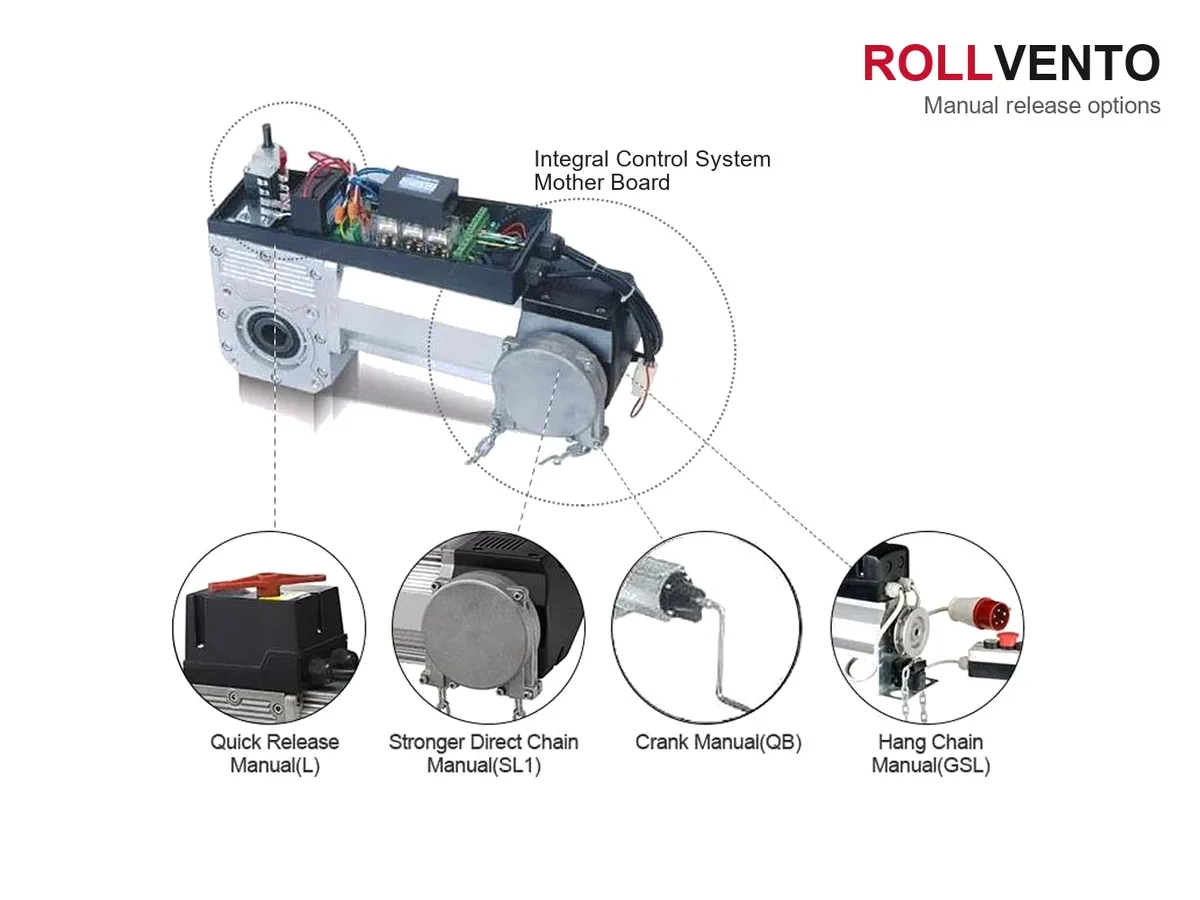

- The emergency hand chain is routed to be reachable from the floor; a chain-engaged interlock cuts power while manual mode is active.
INDUS100DC: frequently asked questions
Where is the INDUS100DC used?
Typical applications: Distribution centres.
How is an industrial door motor different from a rolling shutter motor?
Industrial door motors mount directly on the door’s torsion shaft and are rated by torque (N·m) for spring-balanced sectional and rolling doors. Rolling shutter motors are side-mounted chain drives rated by curtain weight (kg) for unbalanced steel shutters.
What torque do I need?
Torque depends on door weight, drum diameter and balance. A rule-of-thumb starting point is (unbalanced weight in kg × 9.81 × drum radius in m), then apply a safety margin. Rollvento engineering can calculate this from your door dimensions.
