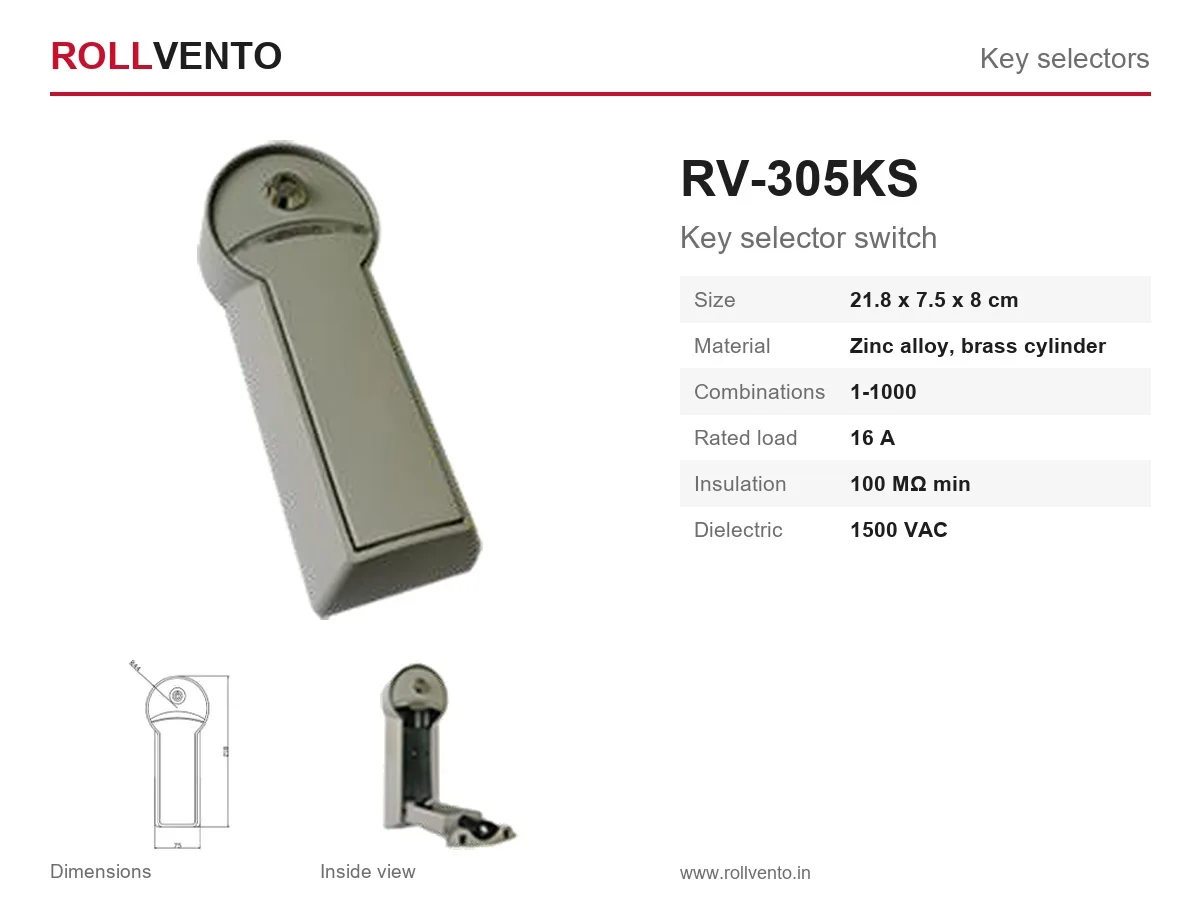

Rollvento RV-305KS Key selector switch

Name: Rollvento RV-305KS Key selector switch
Brand: Rollvento
SKU: RV-305KS

What the RV-305KS delivers

RV-305KS key selector switch — size 21.8 x 7.5 x 8 cm, material Zinc alloy, brass cylinder, combinations 1-1000, rated load 16 A, insulation 100 MΩ min, dielectric 1500 VAC. Supplied as part of the Rollvento key selectors range.

Insulation: 100 MΩ min
Dielectric: 1500 VAC

Technical information

Values as published in Rollvento product data, grouped for quick reference. Open a section to view details; confirm site-specific parameters with engineering before ordering.

Get a Quote

5 sections · 10 items

Combinations: 1-1000
Dielectric: 1500 VAC

Rated load: 16 A

Insulation: 100 MΩ min

Size: 21.8 x 7.5 x 8 cm
Material: Zinc alloy, brass cylinder

Photocells are mounted in facing pairs, aligned so the receiver LED confirms beam lock before the board is programmed.
Racks are fitted in sections with a spacer so the pinion never carries the gate weight.
Receivers and modules connect to the motor control board via the accessory terminals or the board’s plug-in socket.
Warning lamps are wired to the flasher output and positioned to be visible from both approach directions.

FAQ

RV-305KS: frequently asked questions

Where is the RV-305KS used?

Typical applications: .

Which accessories are essential for a gate motor installation?

A pair of safety photocells across the opening, a warning lamp, and a manual release key are the minimum for any vehicle gate. Add a push-button station for on-site control and remotes for users.

Can I add a GSM or Wi-Fi module to an existing motor?

Yes. GSM and Wi-Fi modules connect to the control board’s dry-contact command input, so they work with any motor that accepts a push-button input — including third-party operators.
